51 15 330

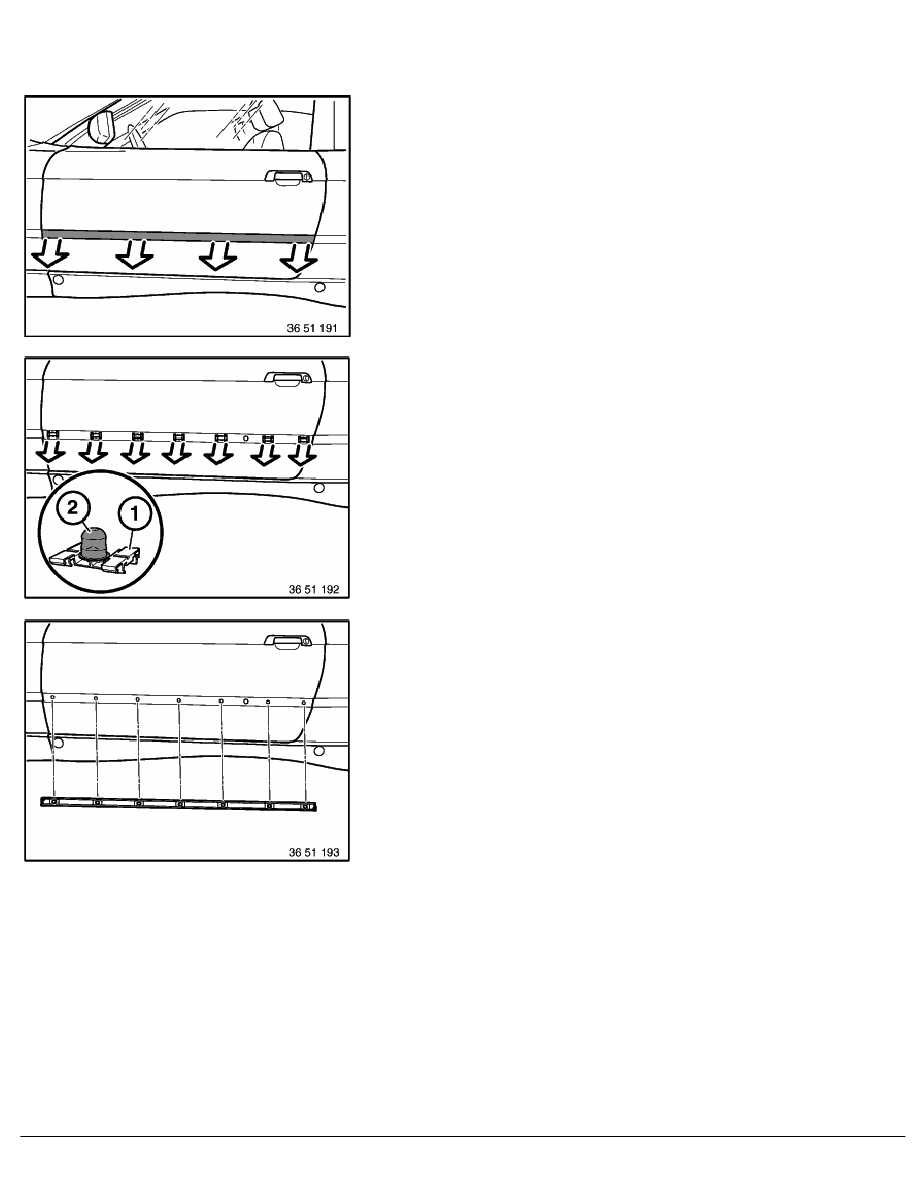

Removing and installing or replacing body
molding on left or right front door

Unclip rubbing strip.

If necessary, lift clips off doors.

Installation note:

If necessary, replace clips (1).

If necessary, replace rubber grommets (2).

Soak clips for a period in water.

Installation note:

Attach clips to body molding in rubber grommet and align.

Clip rubbing strip into door.
