3 Series E36 323ti (M52) COMP
Installation:

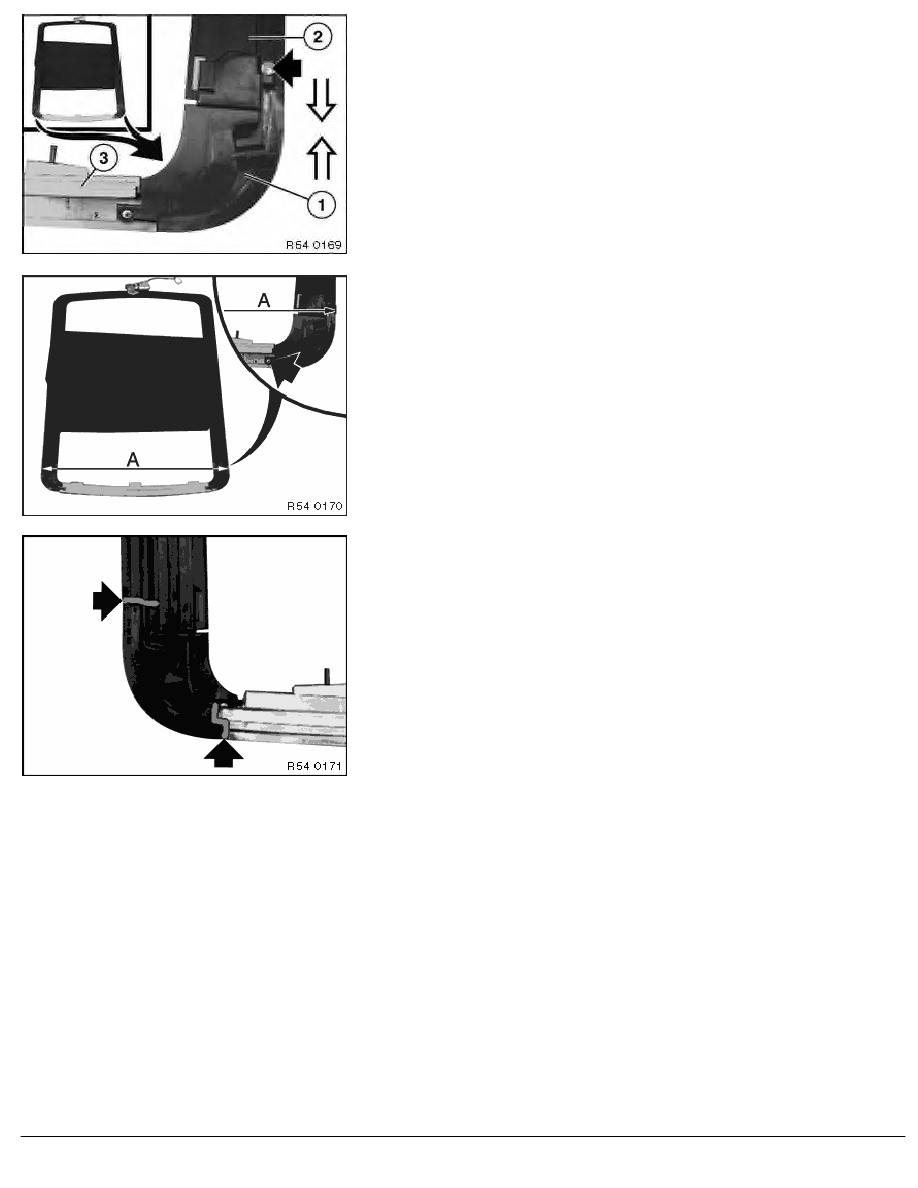

Invert frame of folding sun roof.
Fit corner sections (1) to side of profile rail (2), press together
and tighten down screw (longitudinal adjustment).
Insert rear profile rail (3).
Installation:
Adjust width to dimension (A) and tighten down screw.
Dimension (A) = 895 mm
Installation:
Seal contact points with butylene thread and seal with film
strips.
RA Removing and installing / replacing actuating unit (cables) for left and right s
