3 Series E36 325i (M50) CONVER

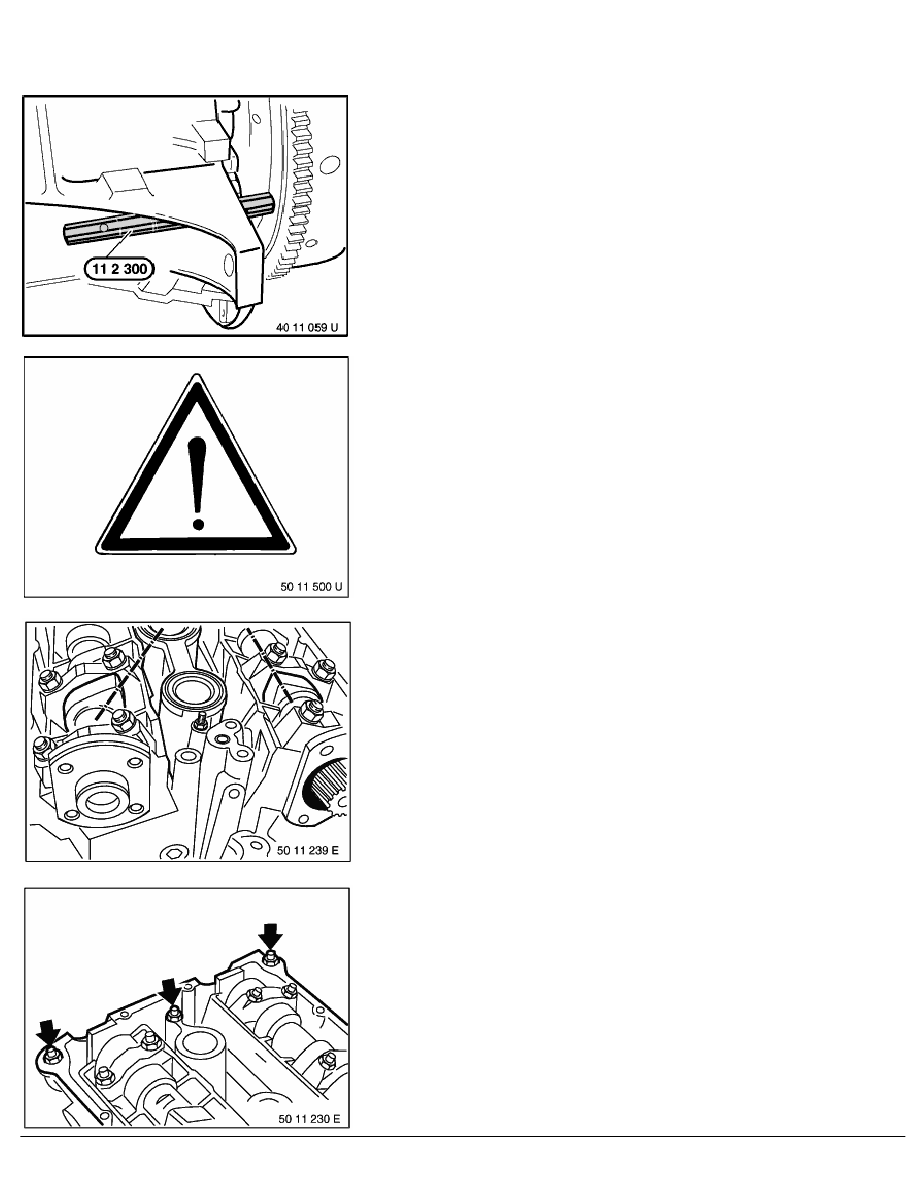

Caution!
Danger of mixing up
1.
Stud for cylinder head cover installation
2.
Stud for thrust washer and sprocket installation
Mount thrust washer and secure with studs.
For tightening torque, refer to Technical Data
Caution!
Mount the intake camshaft sprocket correctly.
Flat side faces VANOS control unit.
Collar faces camshaft.
Mount both sprockets together with chain.
Arrow on exhaust camshaft sprocket points up.
Slots centered.
RA Adjustment specification for camshaft (M50 VANOS)
