3 Series E36 325i (M50) CONVER
Tighten screws down fully.
Dimensions (C) and (D) = 0 mm

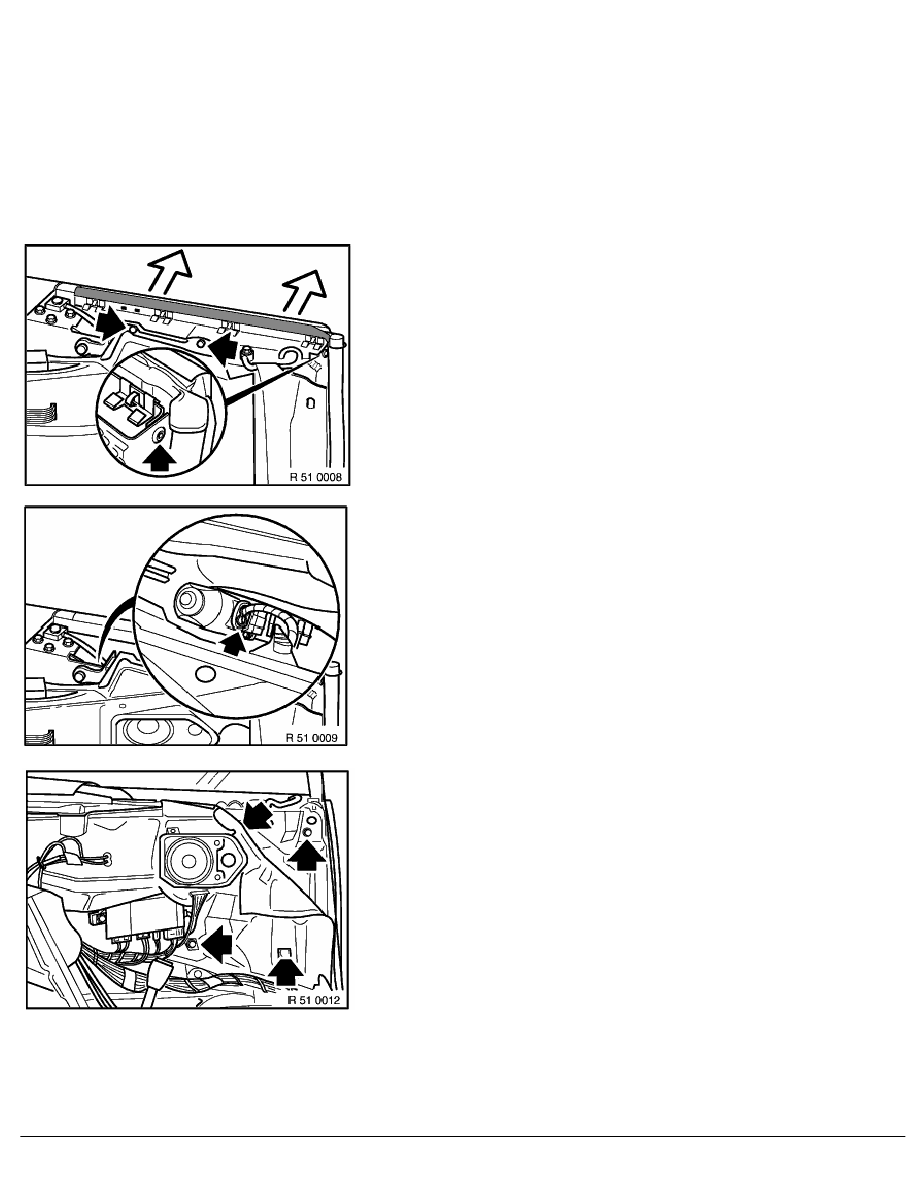

Remove window regulators by lifting upwards.
Installation:
Preset dimensions (C) and (D) before actuating the window
regulator (breakage of window glass).
Dimension (C) = 14 mm
Dimension (D) = 9 mm
Installation:
Initial preloading adjustment:
Preset outer adjusting screw until flush.
Function test.
Adjusting side windows,
refer to 51 37 154
RA Removing and installing complete left or right electrical window regulators (con
