3 Series E36 325tds (M51) TOUR
51 49 000
Removing and installing / replacing trim panel
for trunk lid (touring)
Note:

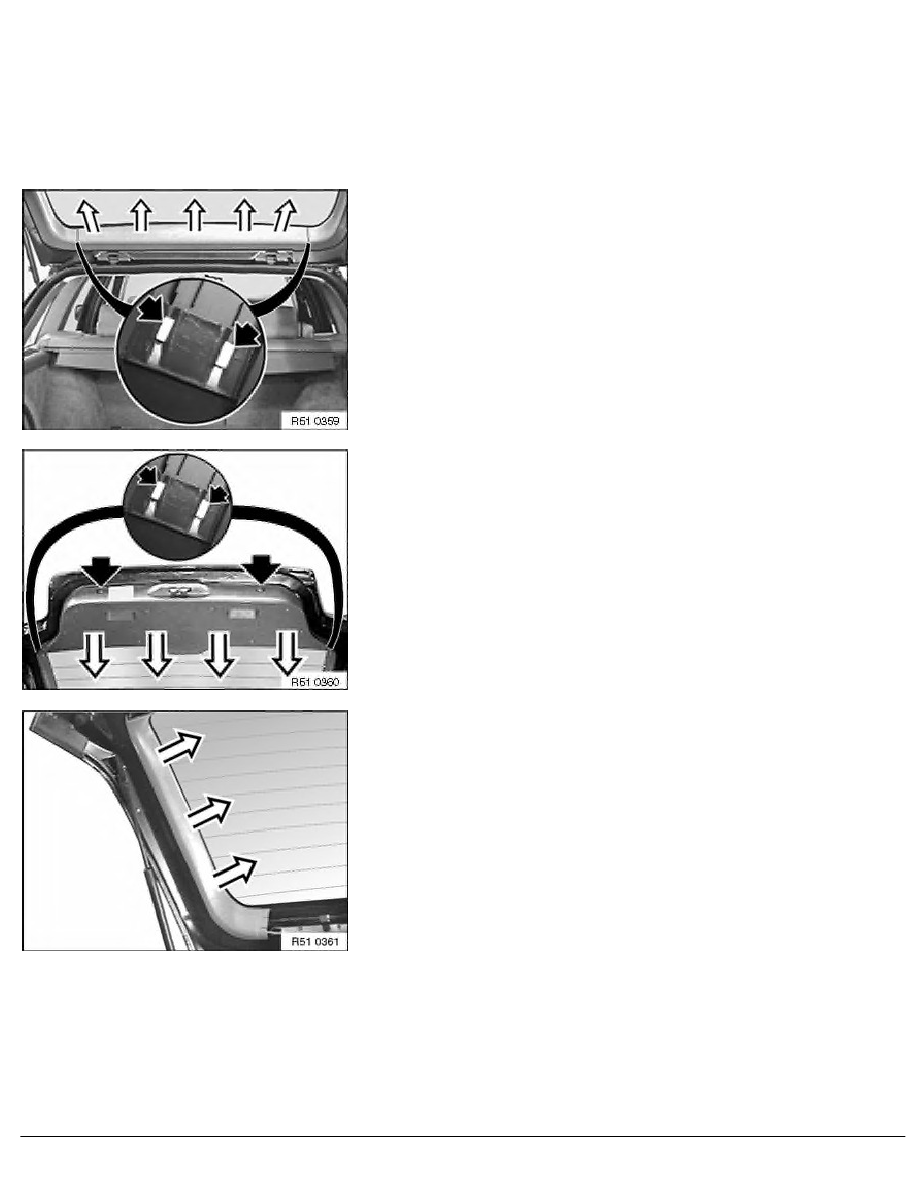

Trim panels are connected with swallow-tail guides (risk of
damage).
Unclip centre / top trim panels.
Installation:
Fit together left, centre and right trim panels (swallow-tail
guide), then clip together.
Unfasten expanding rivets and unclip.
Note:
Remove pins in expanding rivets in trunk lid (rattling noise).
Installation:
Connect together left, centre and right trim panels (swallow-
tail guide), then clip together.
Carefully unclip and remove trim panel.
RA Removing and installing / replacing trim panel for trunk lid (touring)
