3 Series E36 325tds (M51) TOUR
Roadster

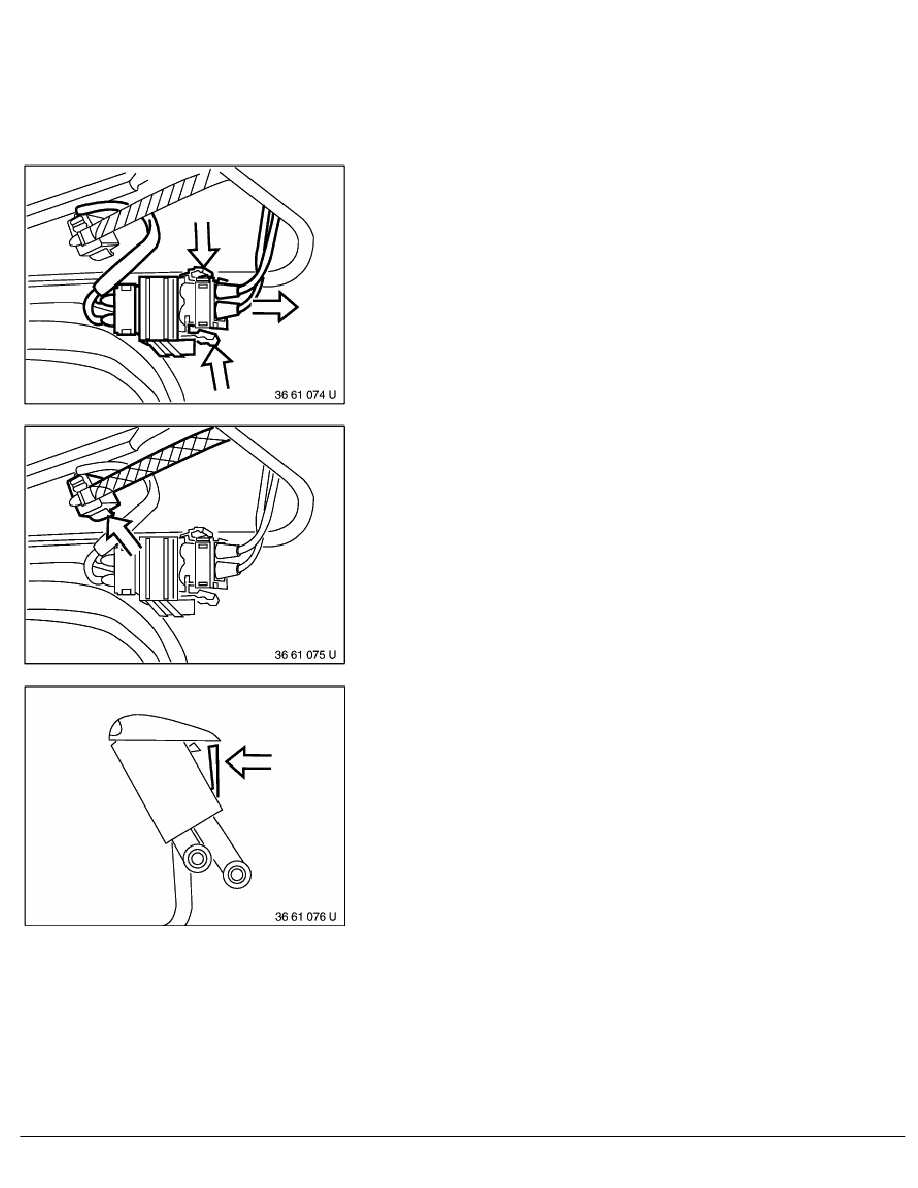

Remove hose (1), press together retaining hooks and remove
spray nozzle.
If necessary, with heated spray nozzle
Pull off connector. Note colors of cables and corresponding pin
sockets.
Pull lines out of connector and individually insert them in the body
aperture.
RA Removing and installing/replacing left or right windshield washer spray nozzles
