3 Series E36 325tds (M51) TOUR
11. Aerial connection

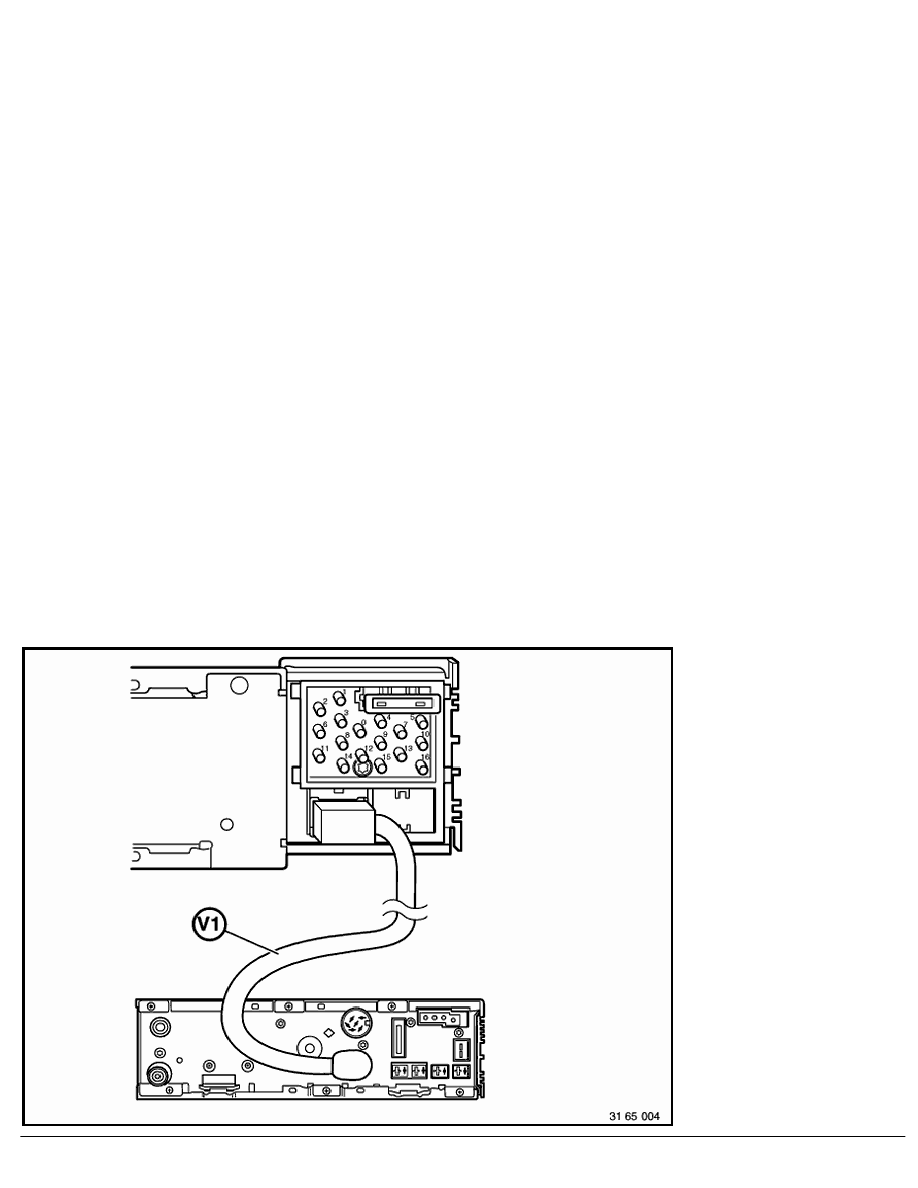

Connections for CD Player End:
1.
Connector, 1-pin (12V control outlet)
2.
Fuse = 3 amperes
3.
Connector (power supply)
4.
Connector (to receiver with connecting cable V3)
5.
Connector (from controls with connecting cable V2)
Pin Assignment, 17-Pin Connector (Controls)
Pin number
Terminal designation
Function (operating section)
Pin 0
LAC-I bus
Pin 1...3
Not used
Pin 4
Telephon mute
Pin 5
Term. 75
(connected pos.)
Pin 6
Not used
Pin 7
DAC-I bus
Pin 8
Not used
Pin 9
Term. 30
(permanent pos.)
Pin 10
GAL
Speedometer outlet
Pin 11...12
Not used
Pin 13
Term. 58g
(Light)
Pin 14
Not used
Pin 15
Term. 31
(earth)
Pin 16
Autom. aerial
Pin Assignment, 4-Pin Connector (Receiver)
Pin number
Terminal designation
Function (receiver)
Pin 1
Term. 31
(earth)
Pin 2
Term. 75
(connected pos.)
Pin 3
Not used
Pin 4
Term. 30
(permanent pos.)
Pin Assignment, 4-Pin Connector (CD player)
Pin number
Terminal designation
Function (CD-changer)
Pin 1
Term. 31
(earth)
RA Checking connecting wires
