3 Series E36 M3 (S50) COUPE
12 6 410

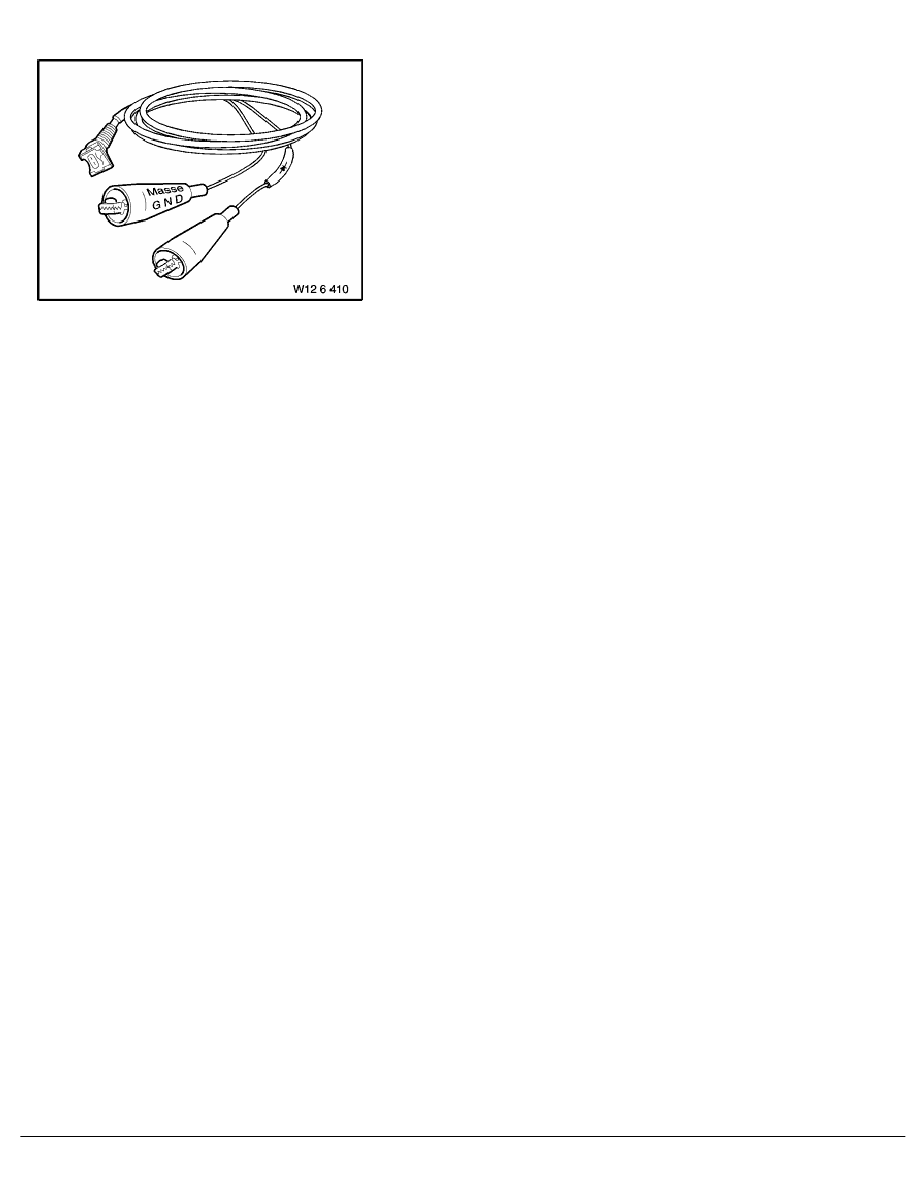

Adapter lead and switching unit
Minimum set: Measuring and testing equipment
Note:
For external operation of VANOS adjustment
unit during assembly and for checking
function of 4/2-way valve
Engine:
M50, M52, S50B32, S54, S62
Storage location:
F 111, F 115
SI number:
1 08 92(555)
Order number:
12 6 410
Adapter lead and switching unit
Consisting of:
12 6 411
Adapter lead with diode
Note: For non-interchangeable connection to
a 12 volt power source, engine: M50, M52,
S62, S54
12 6 412
Switching unit with cable connection
Note: Engine: S50B32
12 6 413
Polarity reversal protector
Note: Retrofit kit with polarity reversal
protection diode for installation in adapter
lead 12 6 411 for the purpose of adapting
it to the power ratings of the switching unit
12 6 050.Identification: Red shrink-fit
sleeve
SWZ Adapter lead and switching unit
