3 Series E36 M3 (S50) COUPE

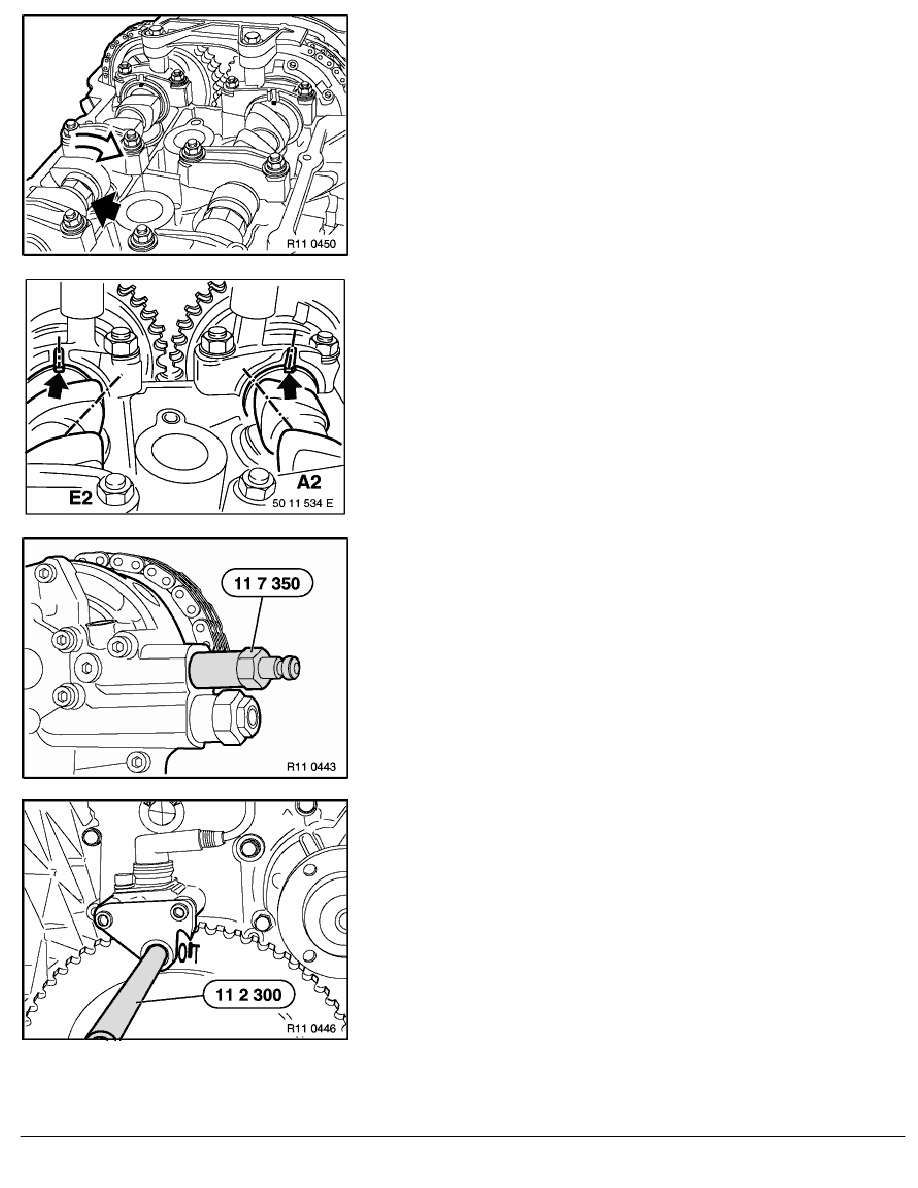

At the same time, rotate intake camshaft at hex head against
direction of rotation until the camshaft noticeably reaches the stop.
Note:
If necessary, press toggle switches on special
tool 12 6 412 several times in both directions until
camshaft starts to move.
Note:
The engine is at the TDC firing position of the first cylinder.
The cam tips of the exhaust and intake camshafts point to
each other.
The grooves in the exhaust and intake camshafts point to the
grooves in the first bearing cover.
Disconnect special tool 12 6 412 from the solenoid valves.
Disconnect compressed air.
Remove special tool 11 7 350.
Remove special tool 11 2 300.
RA Checking timing of camshafts (S50 B32)
