3 Series E36 M3 (S50) COUPE

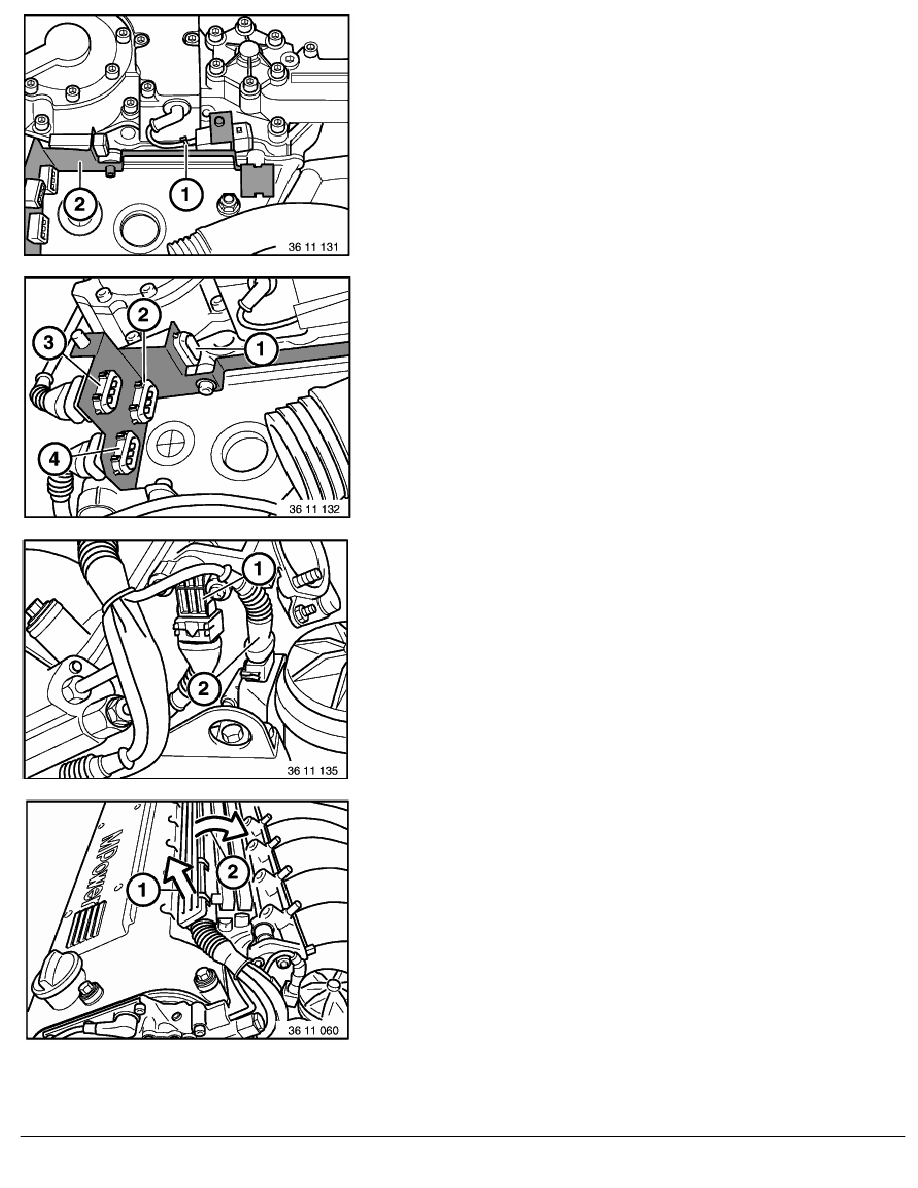

Disconnect connectors of solenoid valves (1) and (2).
Note:
Wires are marked.
Mark and disconnect plug-in connections at front.
Sensor for exhaust camshaft (2)
Pulse sensor on vibration damper (4)
Mark and disconnect plug-in connections at top.
Throttle potentiometer (1)
Sensor for intake camshaft (2)
Pull plug strip off fuel injectors. Lift (1) over injection pipe and air
hose, and lay to one side (2).
RA Replacing all camshafts (S50 B30)
