3 Series E36 M3 (S50) COUPE
Caution!
Do not turn crankshaft any further.

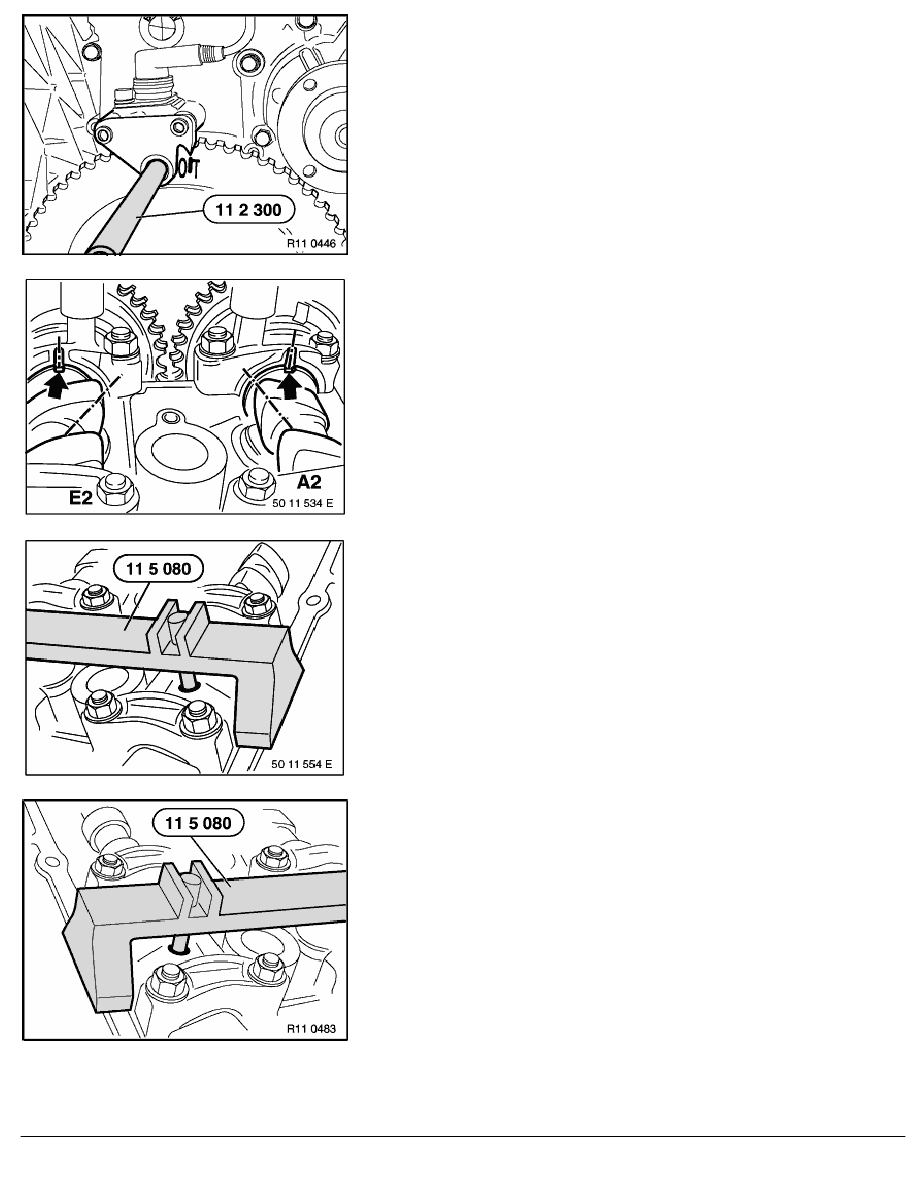

Rotate crankshaft in direction of location as far as ignition TDC
position of cylinder 1. Secure vibration damper with special tool
11 2 300.
Ensure that grooves in pilot bearings of exhaust and intake
camshafts are aligned with grooves in 1st bearing covers.
Check whether special tool 11 5 080 can be inserted in intake
camshaft flush with timing case.
Check whether special tool 11 5 080 can be inserted in
exhaust camshaft flush with timing case.
Remove special tool 11 5 080.
Remove special tool 11 2 300.
RA Replacing all camshafts (S50 B32)
