3 Series E36 M3 (S50) COUPE

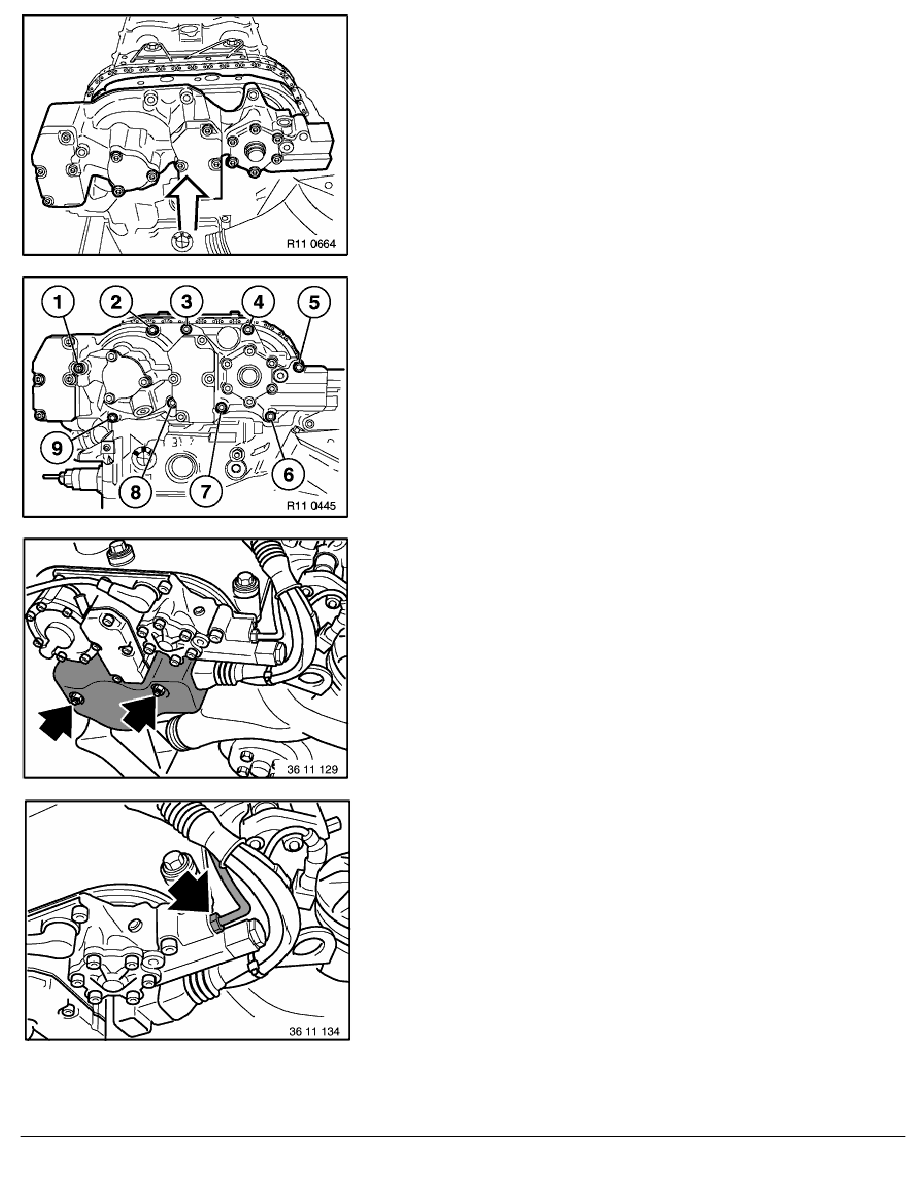

Push in VANOS control unit as far as timing case.
Note:
Secure ground tape with screw (7).
Install screws (1 ... 9) of VANOS adjustment unit, pretighten to
approx. 5 Nm and then tighten securely in a second tightening
procedure.
Insert screw connections in solenoid valves.
Fit cover to plug connections.
Fit oil pipe to VANOS adjusting unit.
Tightening Torque,
refer to Technical Data 11 36 9AZ
Assemble engine.
RA Adjusting timing of camshafts (S50 B32)
