3 Series E36 M3 (S50) COUPE
11 72 000
Removing and installing or replacing air
pump (S50)
Remove drive belt for air pump, refer to 11 72 041

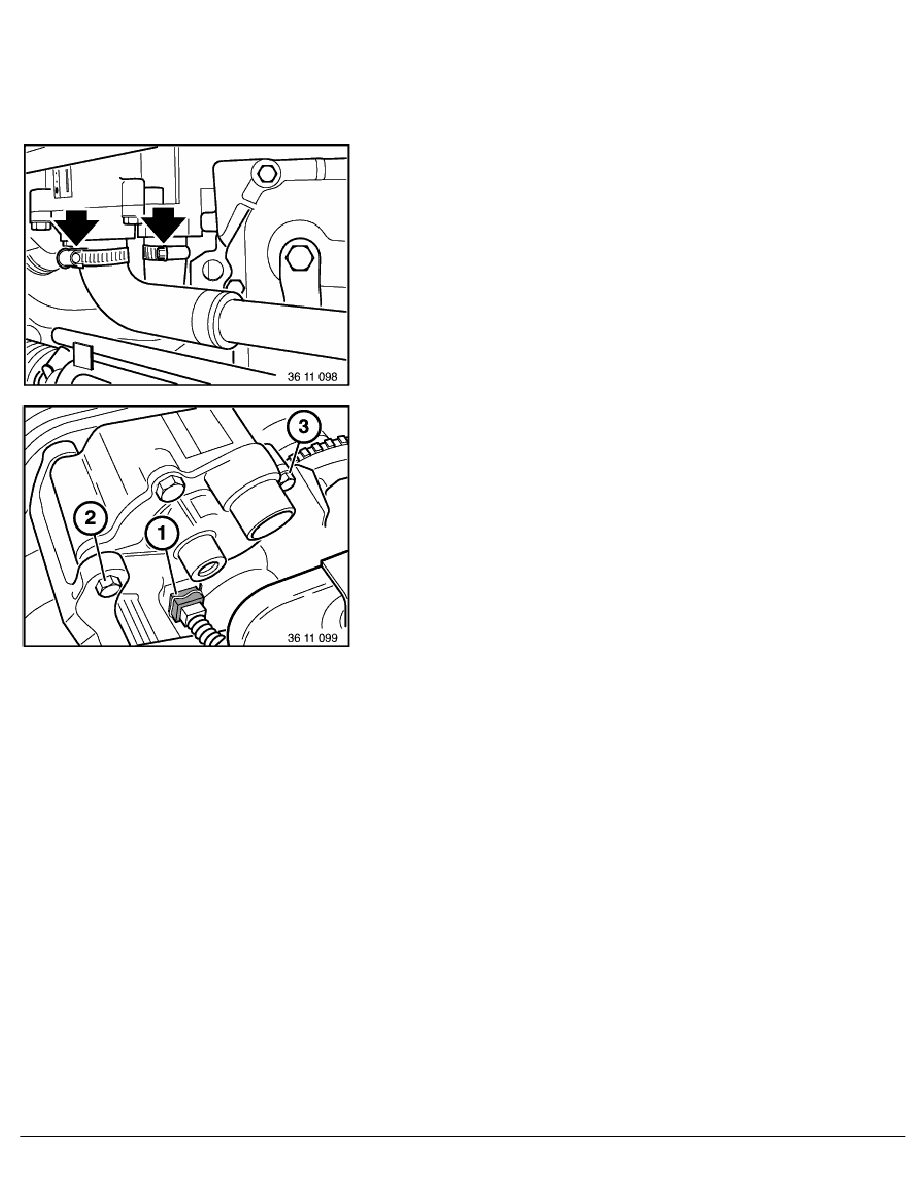

Unfasten hose clips and remove hoses.
Disconnect plug-in connection (1).
Unfasten screws (2) and (3), remove air pump and replace if
necessary.
Installation note:
Remember to fit seal in connector.
