3 Series E36 M3 (S52) CONVER

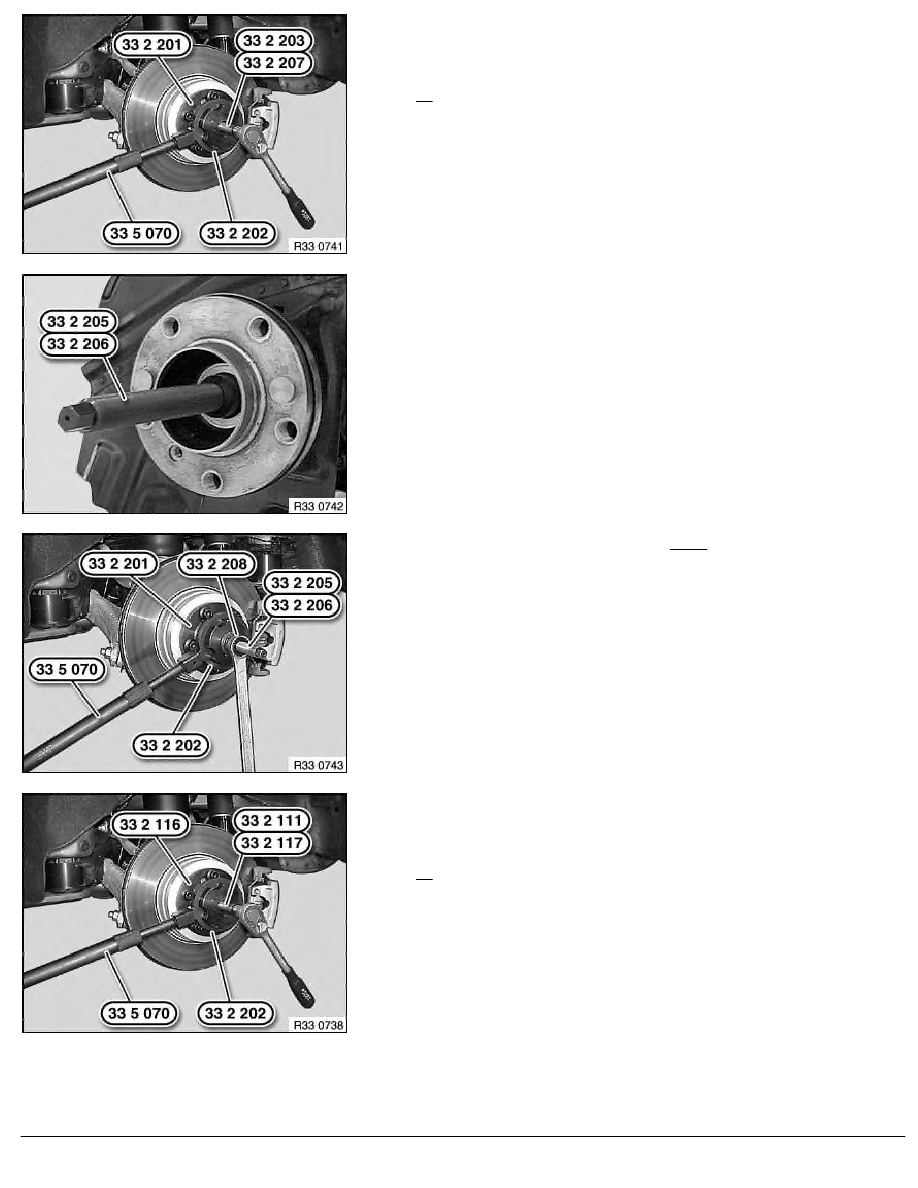

Special tool 33 2 200:
Secure output shaft against falling out.
Screw on special tool 33 2 203 , 33 2 207 and 33 2 201 with
all wheel studs to drive flange.
Press output shaft out of drive flange; in so doing, grip basic
body 33 2 201 with special tools 33 2 202 and 33 5 070 .
Important!
No oil permitted on shaft journal thread!
Lightly oil spline teeth of output shaft.
Insert output shaft into drive flange.
Screw special tool 33 2 205 / 33 2 206 onto output shaft.
Mount special tool 33 2 201 with three wheel studs to drive
flange.
Draw in output shaft with special tool 33 2 205 up to stop; in so
doing, grip basic body 33 2 201 with special tools 33 2 202
and 33 5 070 .
Special tool 33 2 100:
Secure output shaft against falling out.
Screw on special tool 33 2 111 , 33 2 117 and 33 2 116 with
all wheel studs to drive flange.
Press output shaft out of drive flange; in so doing, grip basic
body 33 2 116 with special tools 33 2 202 and 33 5 070 .
RA Pressing output shaft out of drive flange and drawing in (output shaft removed f
