3 Series E36 M3 (S52) CONVER

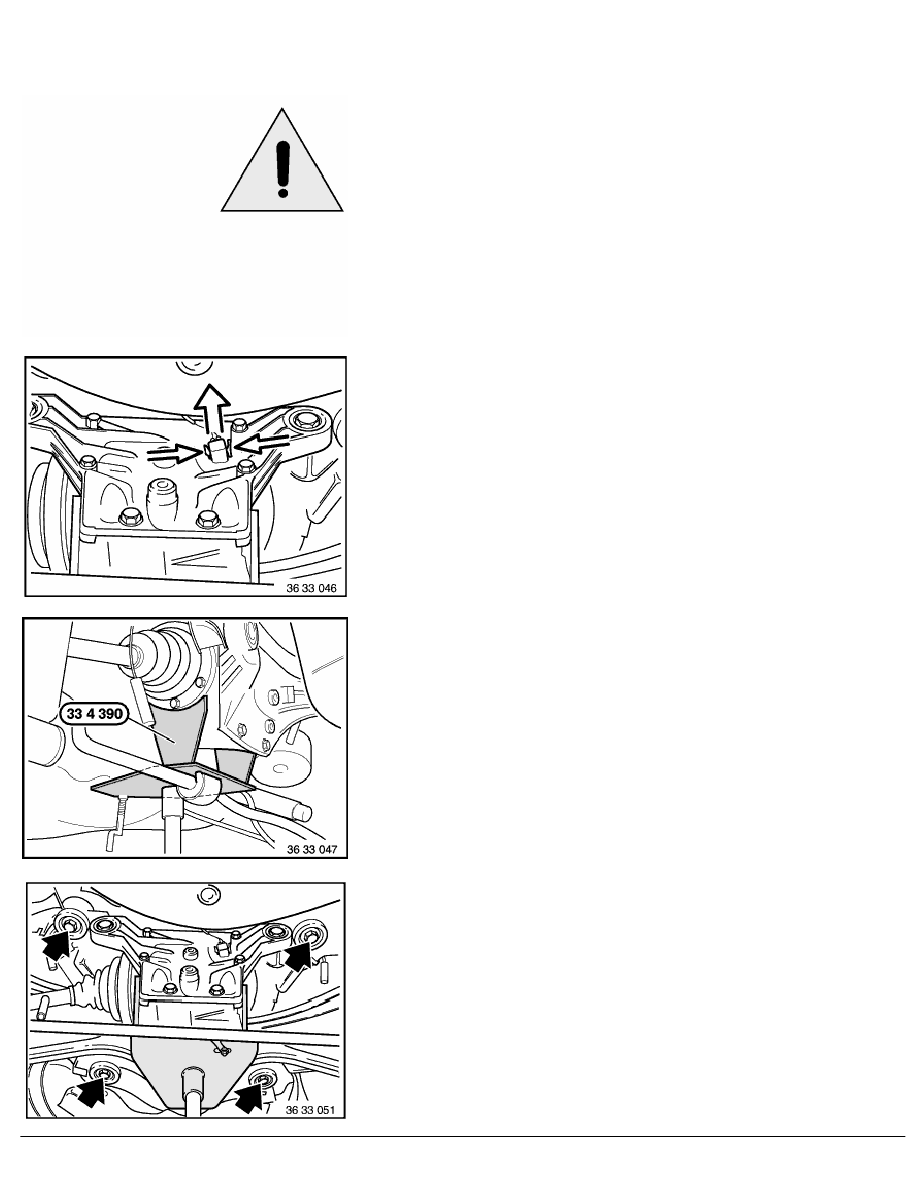

Lower rear axle carrier until special tool
00 8 550/33 3 323/324 can be fitted.
Heat sleeve with a hot air blower. Do not point air jet
at fuel tank.
Pull out rubber mount using special tool.
Installation:
Rubber mounts may only be installed in pairs of same make.
Coat new mount (1) with Circolight, refer to BMW Parts Service.
Pull in mount with special tool 33 3 222/223/314/315.
Secure top of spindle with standard nut M 12 (2).
RA Replacing two rubber mounts for rear axle carrier (rubber mounts, front)
