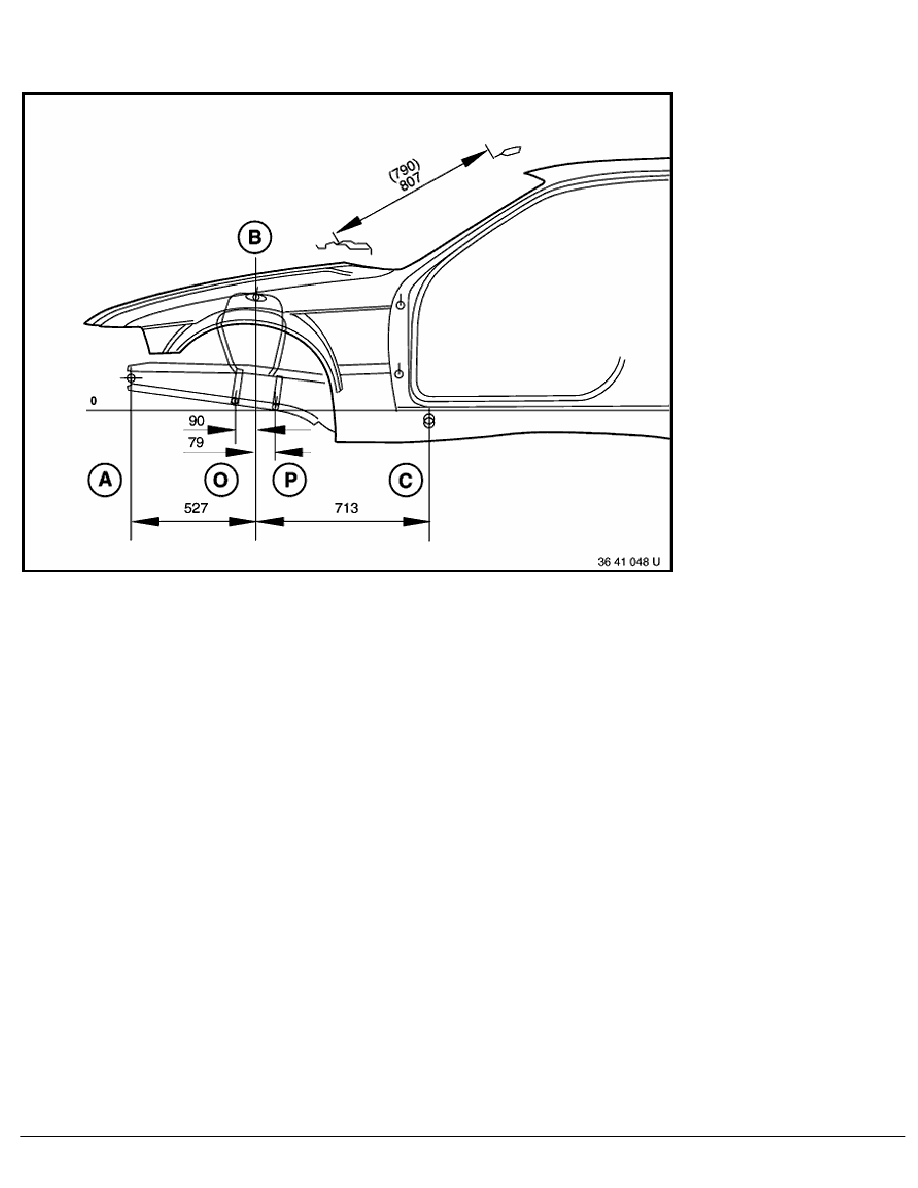

Frame alignment control dimensions for body, side view of front structure of BMW E 36 4-
door/2-door/touring/compact
A
Front impact absorber support, without attached
front trim panel
B
Front spring support
C
Vehicle jack front take-up point
O
Front support point for front axle
P
Front axle mount, rear
Dimensions in mm,
Tolerance: dimension over 1000 mm
±
2.0 mm,
Tolerance: dimension up to 1000 mm
±
1.0 mm.
Differing dimensions for 2-door in brackets.
Note:
Only use the indicated values for a rough inspection.
Repairs can only be carried out correctly with the approved set of attachments and a straightening bench.
RA Frame alignment control dimensions for body, side view of front structure of BMW
