3 Series E36 M3 (S52) CONVER

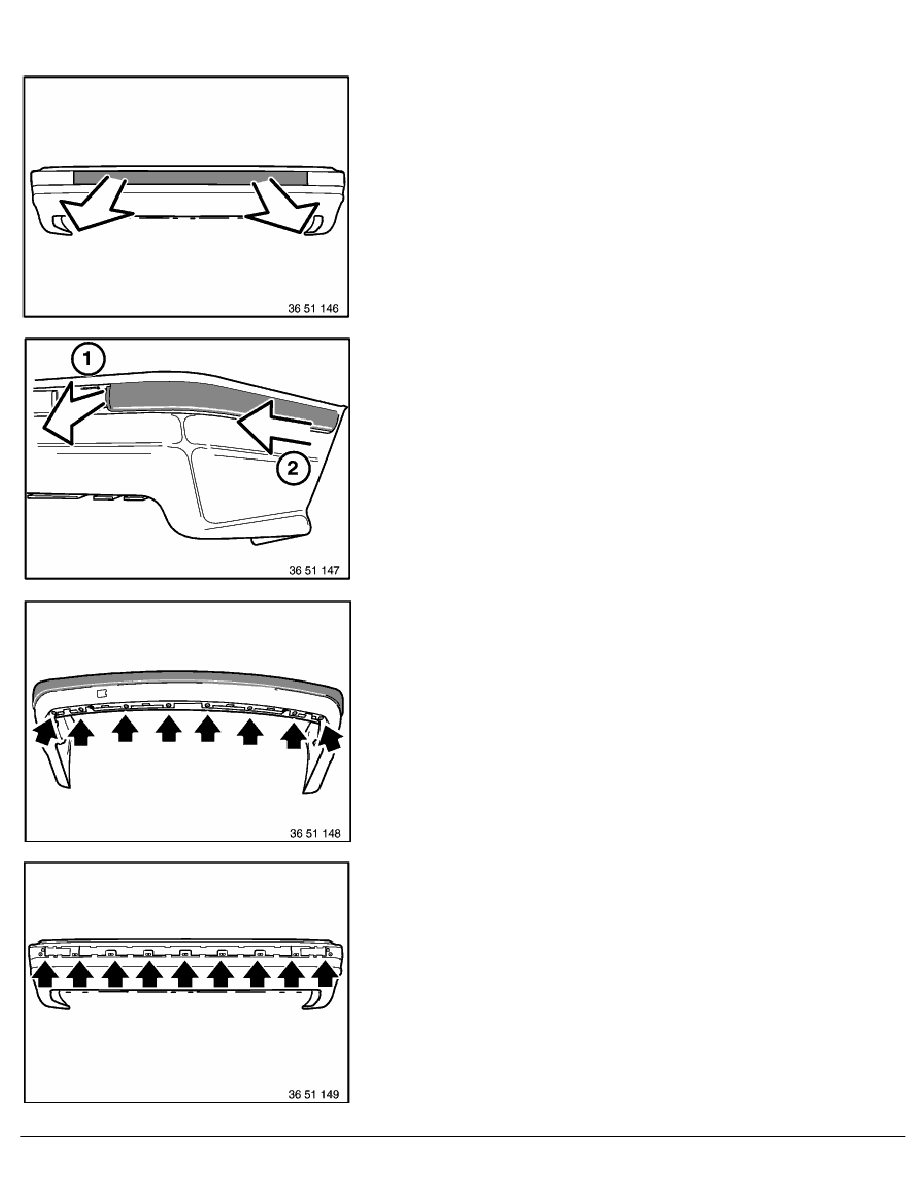

Unclip bumper panel (1) at left and right. Pull holder (2) and inlet
(3) off.
Remove expansion rivets and take off heat shield.
Unclip towing eye cover. Unclip and remove retaining strap.
Unscrew bolts and take bracket off carrier.
Installation note:
Tightening torque,
refer to Technical Data
RA Disassembling and assembling rear bumper
