3 Series E36 M3 (S52) CONVER
Installation note:
When installing underbody protection, make sure that air duct
for oil cooler is correctly positioned (insert between radiator
and oil cooler).
M 51:

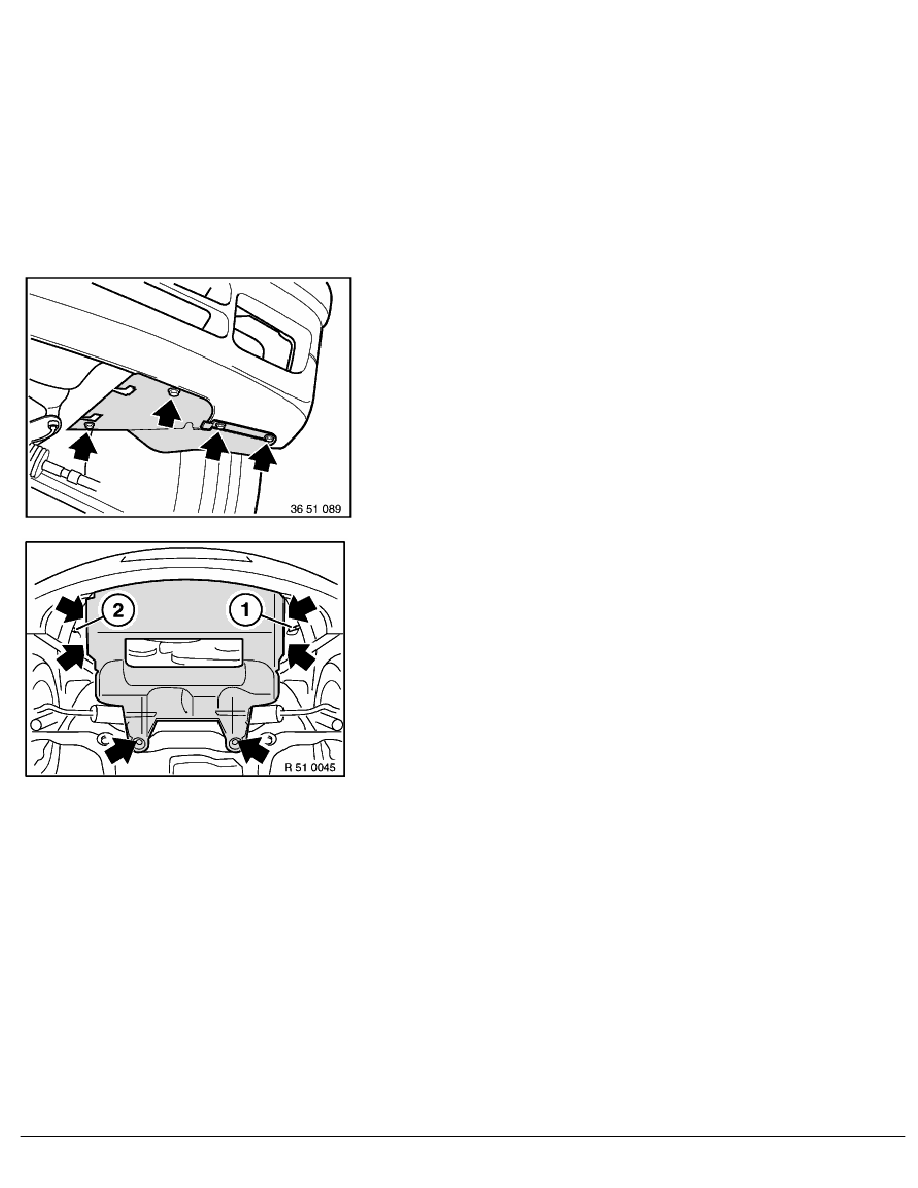

Release screws, left/right, and remove covers.
Remove air temperature sensor (1) from brake air duct.
If necessary, remove thermo switch (2) for heated washer nozzles
from brake cooling air duct.
Release screws and remove underbody protection.
Installation note:
When installing underbody protection, make sure that air duct
for oil cooler is correctly positioned (insert between radiator
and oil cooler).
RA Removing and installing or replacing front underbody protection (engine)
