3 Series E36 M3 (S52) CONVER
52 10 080

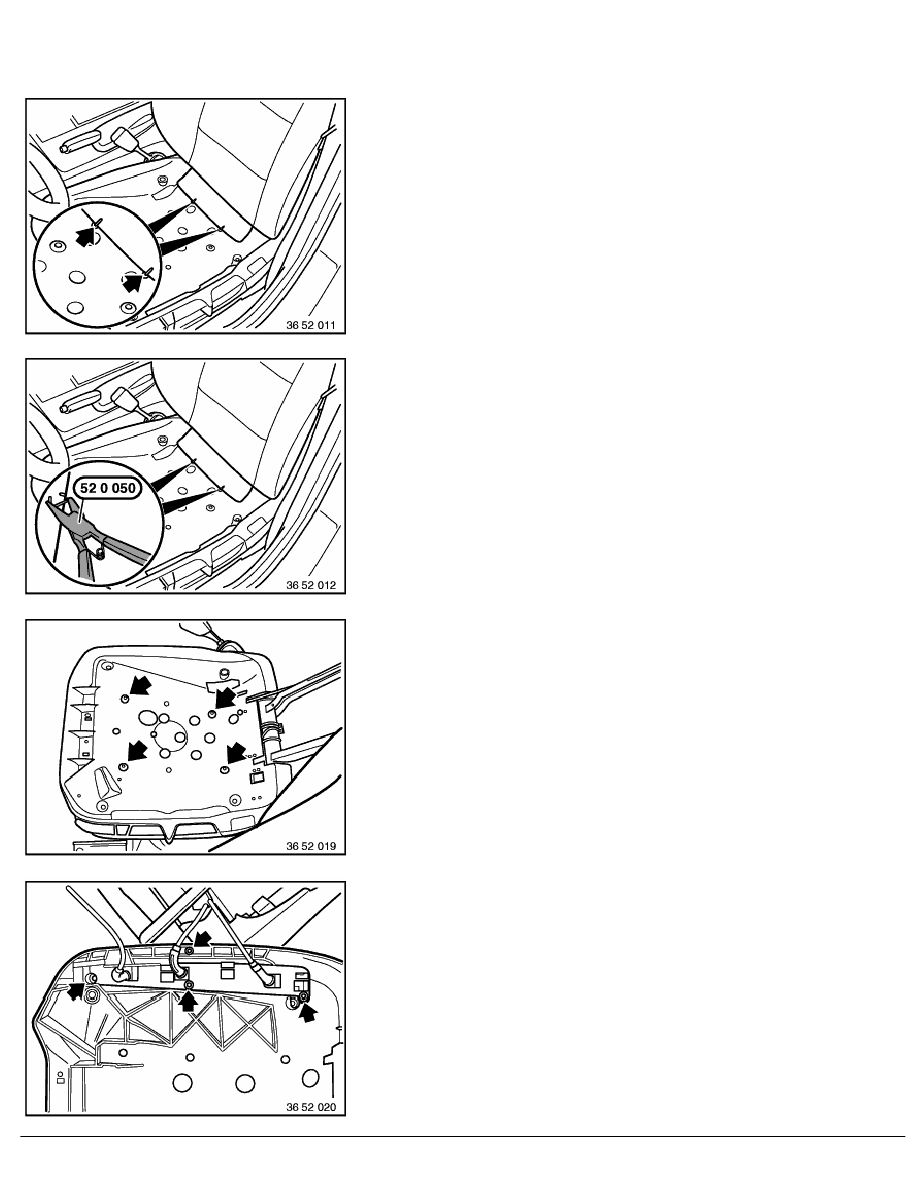

Removing and installing or replacing cushion
shell on left or right front seat (manual)
Remove seat cushion,
refer to 52 10 079
Loosen retainers.
Installation:
Lock new retainers by bending with special tool 52 0 050.
Unscrew screw.
Turn cushion shell around.
Unscrew bolts.
RA Removing and installing or replacing cushion shell on left or right front seat (
