3 Series E36 M3 (S52) CONVER
54 34 020
Removing and installing or replacing
electrical convertible top drive unit
Note:
Turn ignition lock into "0" setting.
Disconnect drives,
refer to 54 34 002.
Remove convertible top compartment cover.
Remove trunk trim, left side,
refer to 51 47 151

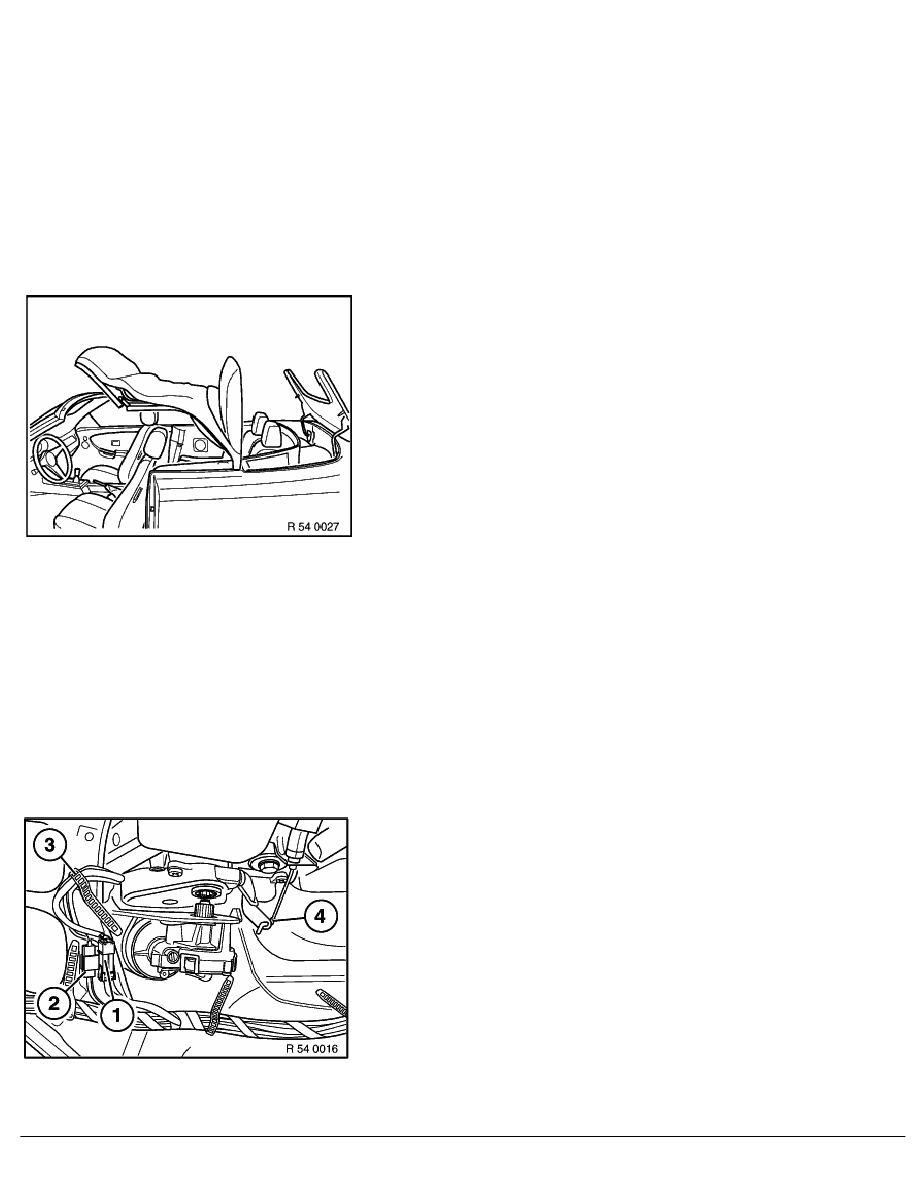

Soft top closed:
Unlock convertible top and raise over dead center. Lift clamping
bracket and convertible top compartment cover upright.
Soft top opened:
Open convertible top lid and lift convertible top out of convertible
top box. Raise clamping bracket into upright position.
Note:
If it is not possible to lift the convertible top out of the
convertible top box, engage convertible top drive unit and
power convertible top out of box electrically. If electric drive
does not work, press convertible top down into the convertible
top box and press convertible top drive rod (2) firmly
outwards. Check convertible top adjustment.
Disconnect plugs (1 and 2).
Disconnect cable ties (3).
Disengage Bowden cable (4) of emergency release mechanism.
