3 Series E36 M3 (S52) CONVER
54 34 150

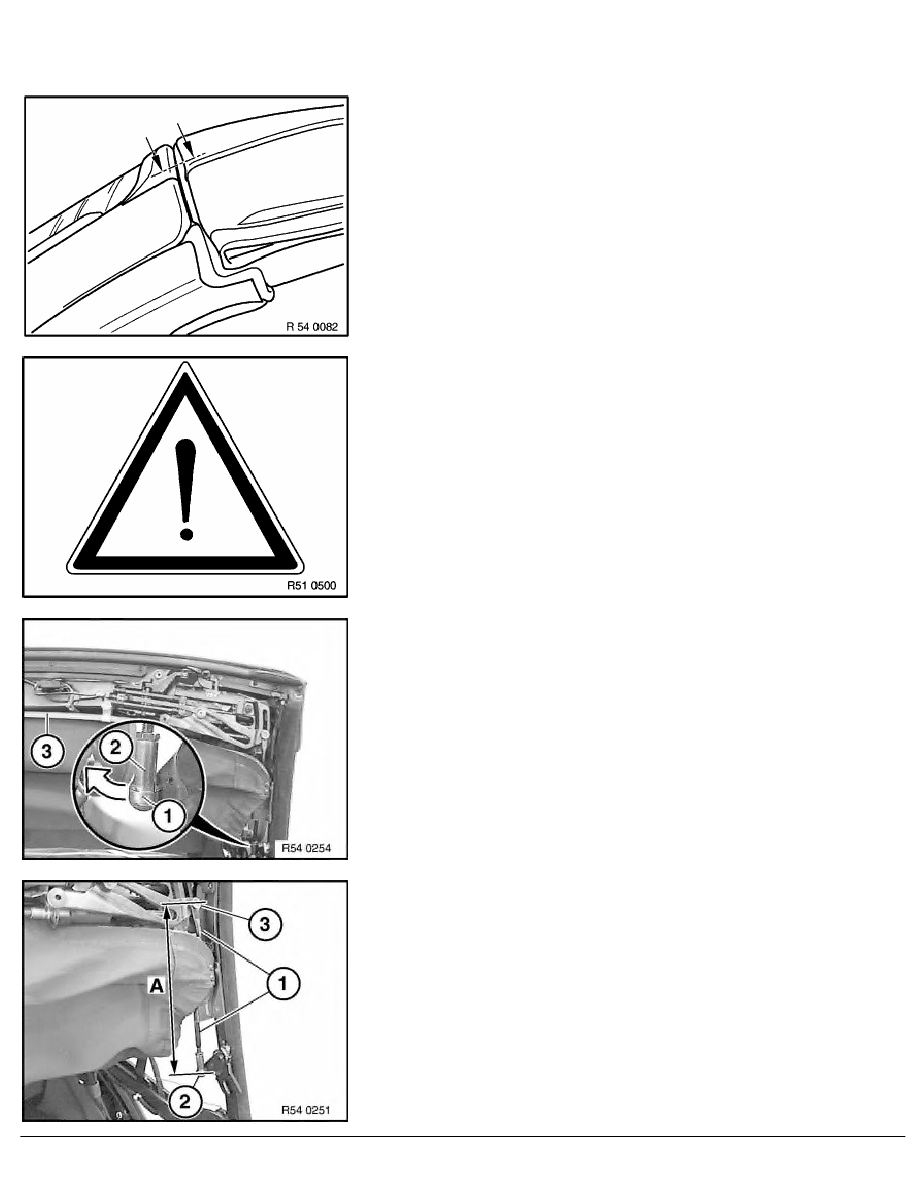

Adjusting left or right convertible top lock
(fully automatic)
Ideal adjustment:
Lid should close flush with windshield.
Note:
Open convertible top up to microswitch (S8) "convertible top
switches via dead center point".
Remove and install trim on convertible top lock,
refer to 54 34 125
In addition, on right convertible top lock:
Remove and install drive for convertible top lock,
refer to 54 34 200
Lift out retainer (1) and disconnect ball pan (2).
Pull input shaft (3) off motor.
Adjust dimension (A) of dead center point rod (1) from center of
ball pan (2) to center of screw connection (3).
Dimension (A) = 205.5
±
1
RA Adjusting left or right convertible top lock (fully automatic)
