3 Series E36 M3 (S52) SAL

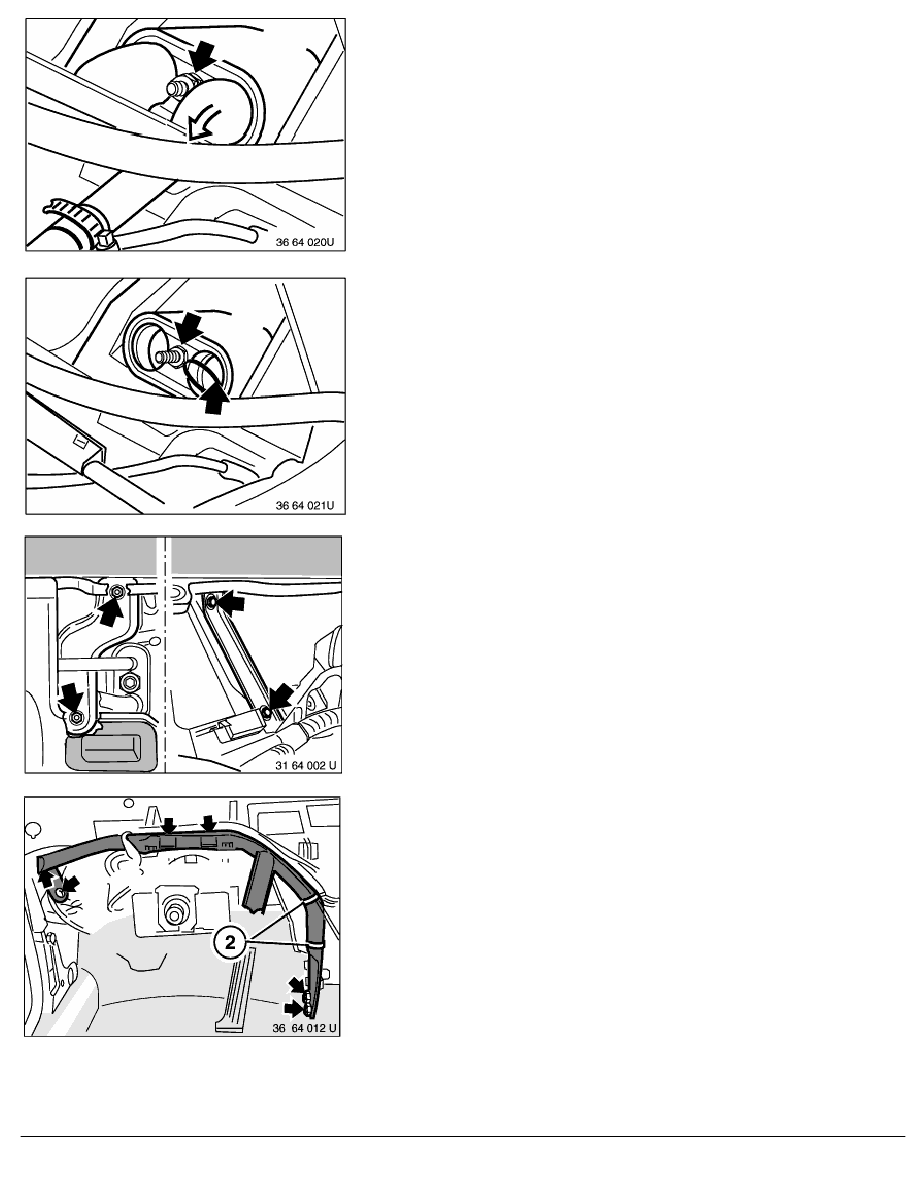

Unscrew screw and place water flange to one side.
Blow air into feed hose to prevent residual coolant in heater core
from running out on the carpet.
Caution!
Always replace O-rings.
Unscrew left and right bolts.
Cut off cable strap (2). Remove screws and remove reinforcement
pipe for steering column.
RA Removing and installing or replacing complete heater
BMW AG - TIS
10.02.2013 15:59
Issue status (12/2007) Valid only until next DVD is issued
Copyright
Page - 2 -
