3 Series E36 M3 (S52) SAL
64 11 205
Removing and installing or replacing heater
(with integrated air-conditioning system)
Note:
This operation is identical to operation
64 11 200
Additional work is described below.

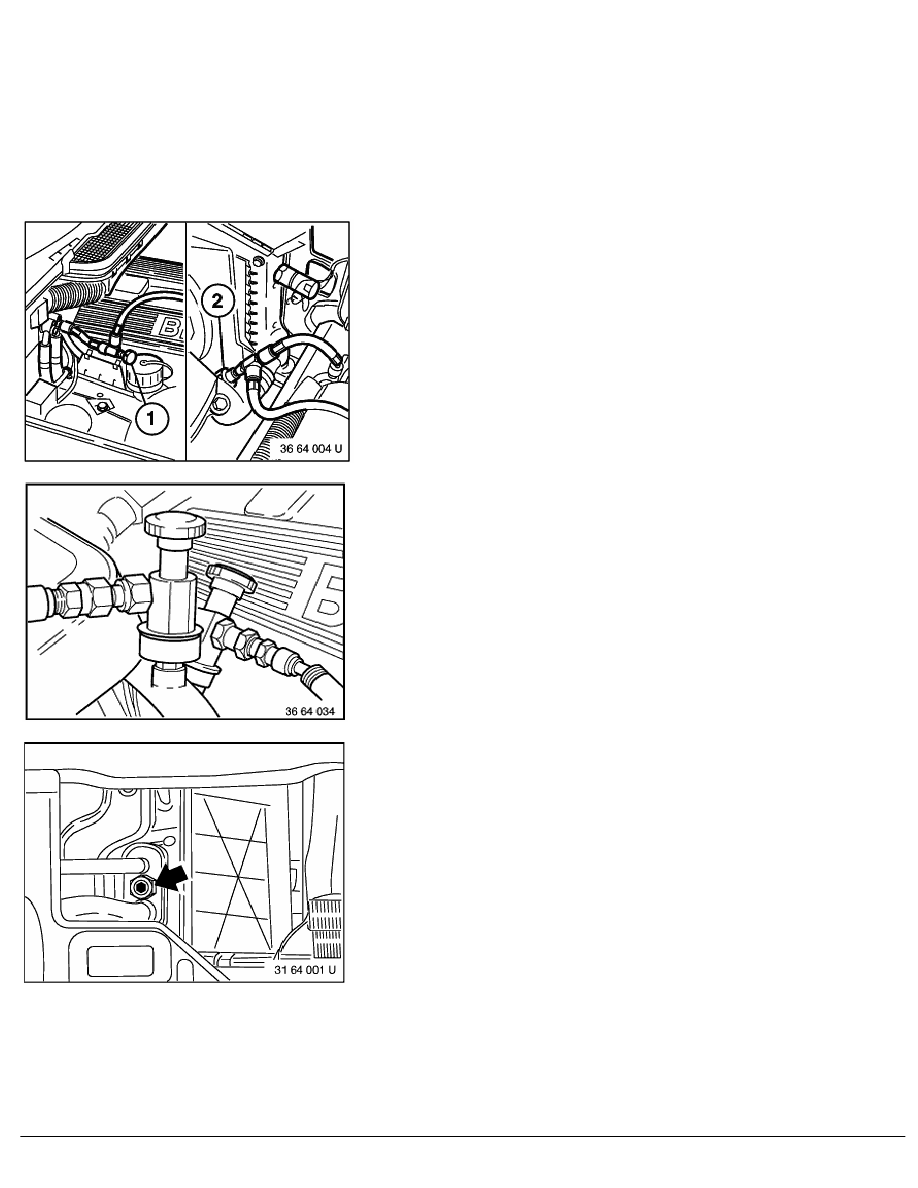

Connect service station to vehicle and draw refrigerant out of air-
conditioning system.
Caution!
R 12 Station
Connect service station to vehicle and draw refrigerant out of air-
conditioning system.
Caution!
R 134a Station
Remove nuts.
Installation note:
For tightening torque,
refer to Technical Data
Replace O-rings.
