3 Series E36 M coupe (S50) COUPE

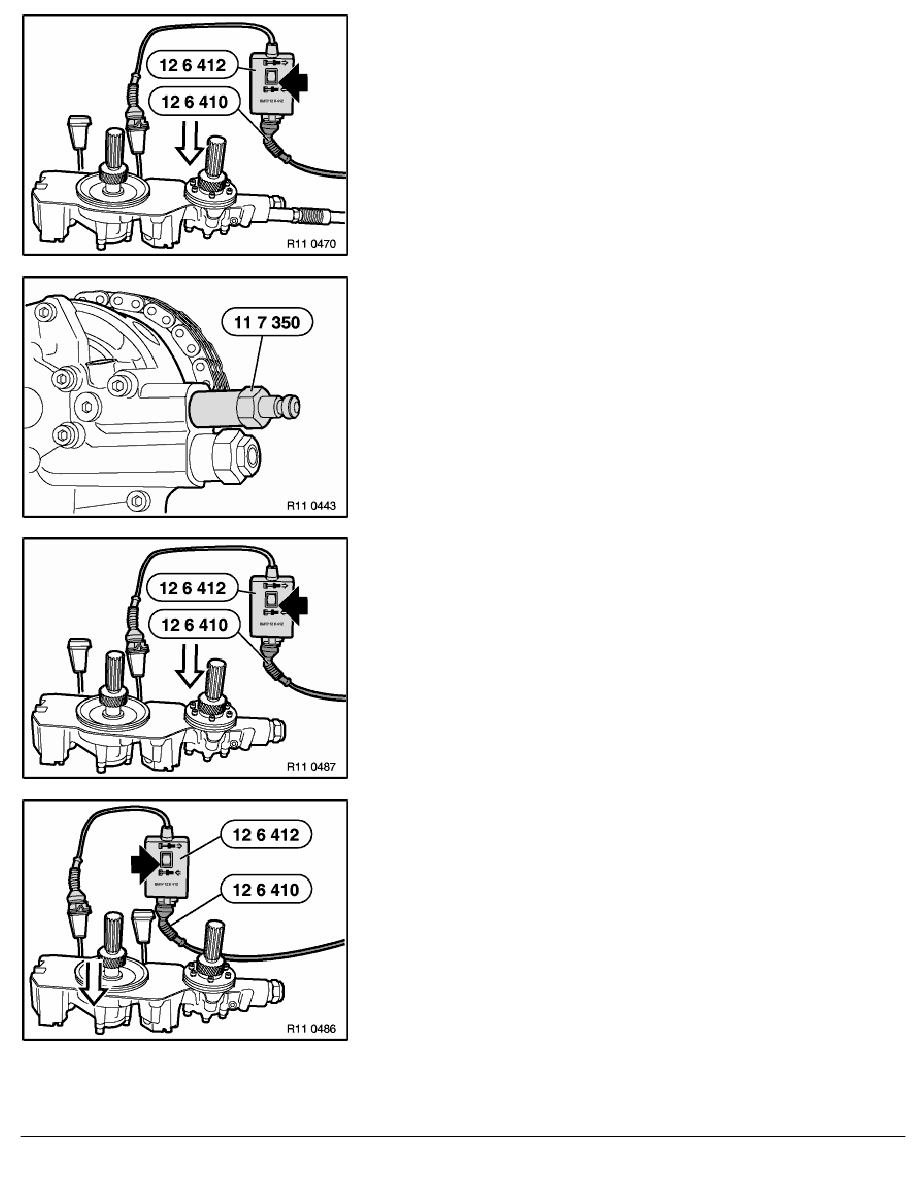

Press toggle switch on special tool 12 6 412 into position for
retracting VANOS splined shaft.
Splined shaft retracts on hydraulic piston (initial setting).
Disconnect compressed air.
Remove special tool 11 7 350.
Press toggle switch on special tool 12 6 412 into position for
retracting VANOS splined shaft.
Hydraulic piston is vented.
At the same time, press splined shaft and hydraulic piston back
into initial position by hand.
Connect special tool 12 6 412 to the solenoid valves on the
exhaust end.
Press toggle switch on special tool 12 6 412 into position for
retracting VANOS splined shaft.
Hydraulic piston is vented.
At the same time, press splined shaft and hydraulic piston back
into initial position by hand.
Disconnect special tools 12 6 412 and 12 6 410 from the
solenoid valves.
RA Replacing all camshafts (S50 B32)
