3 Series E36 M coupe (S50) COUPE

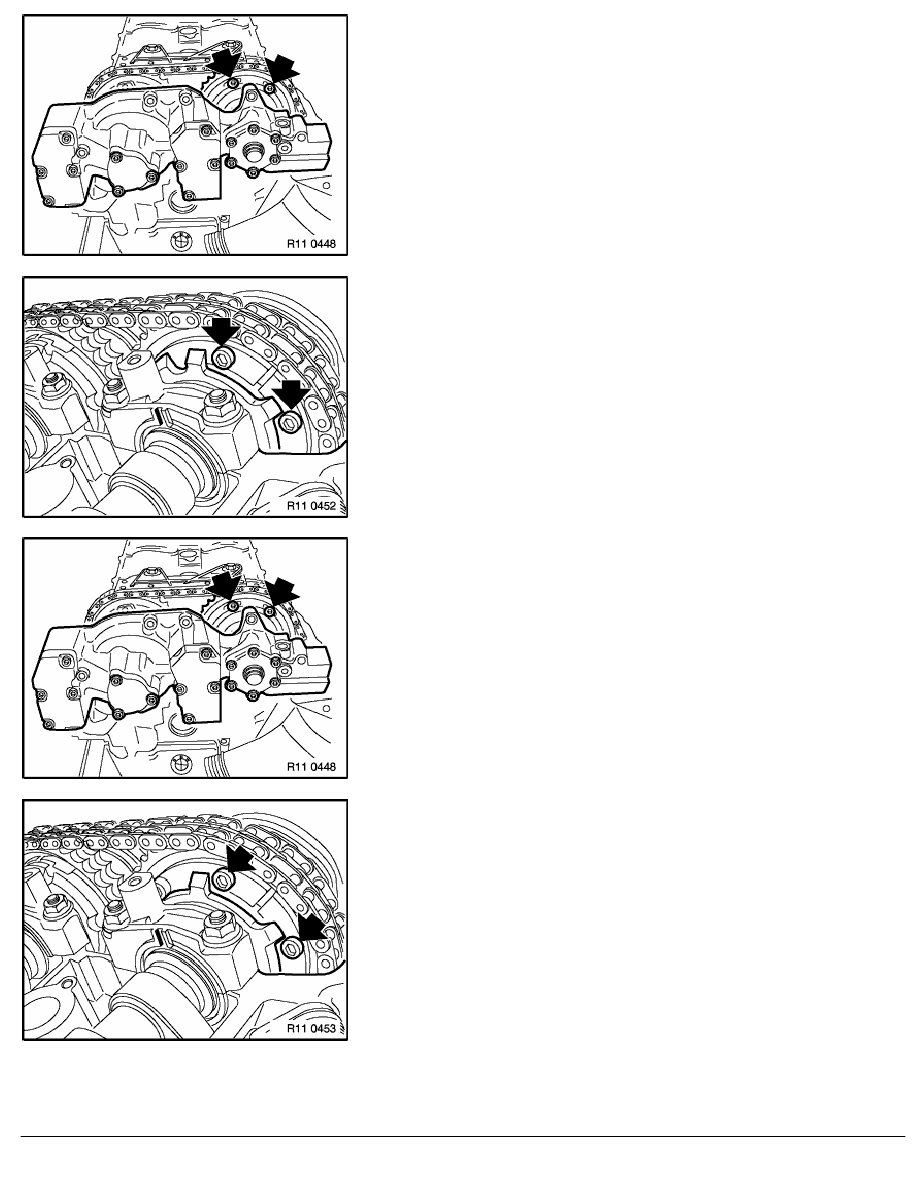

Continue rotating crankshaft in direction of rotation until two more
screws are accessible on the intake end of the VANOS unit.
Tighten these two bolts.
Tighten down the two accessible screws on the exhaust end of the
VANOS unit.
Continue to rotate crankshaft in direction of rotation until
remaining two screws on intake end of VANOS unit are
accessible.
Tighten these two bolts.
Tighten down the last two screws on the exhaust end of the
VANOS unit.
RA Adjusting timing of camshafts (S50 B32)
