3 Series E36 M coupe (S50) COUPE

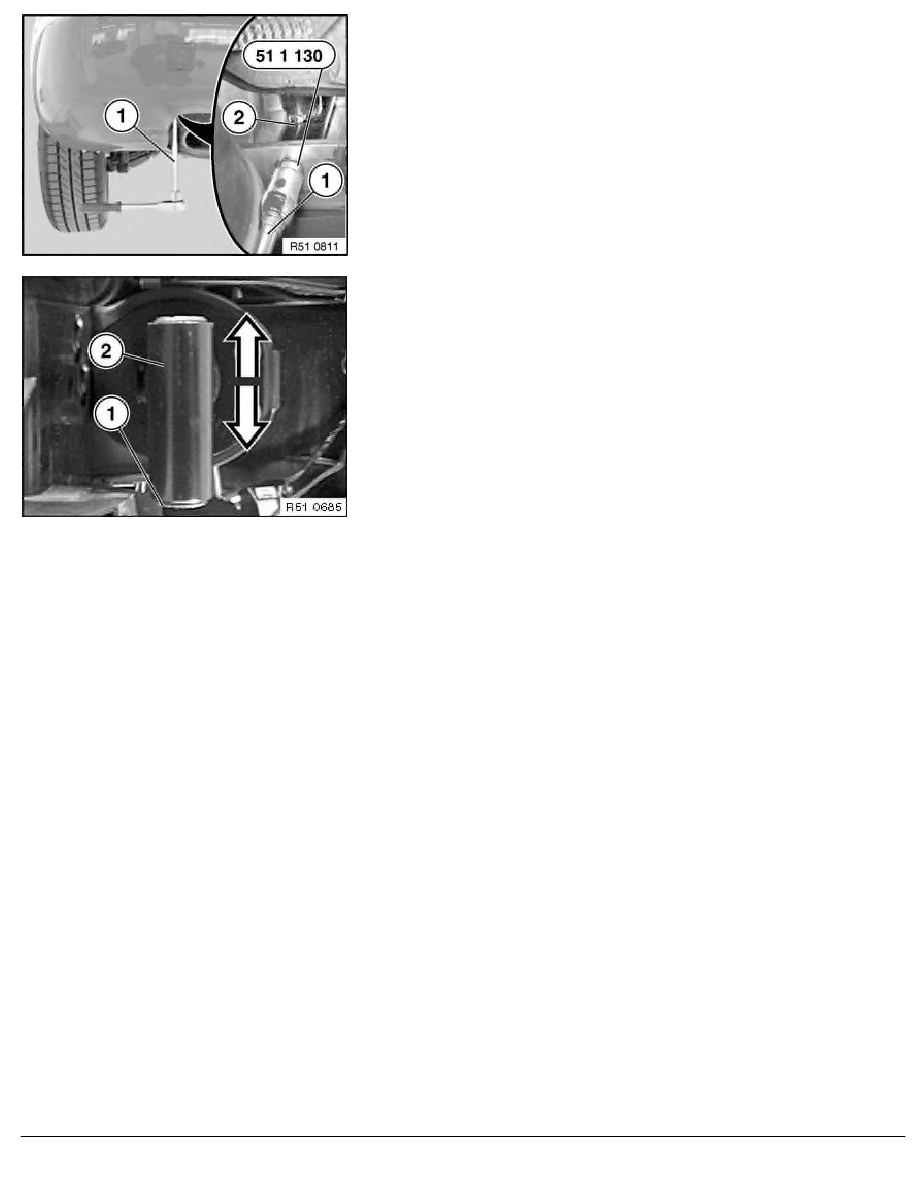

Insert special tool 51 1 130 on standard extension (1) through
bore with reversible handle into shock absorber (2).
Height of bumper (in rear area) is now set by twisting socket head
cap screw (1) in shock absorber (2).
Note:
Adjustment only possible when bumper is fitted using special
tool 51 1 130.
RA Removing and installing complete rear bumper (Z3 Roadster, M Roadster, Z3 Coupé,
