3 Series E36 M coupe (S52) COUPE
Version without plate spring
Note:
On version without plate spring, special tool is not required.

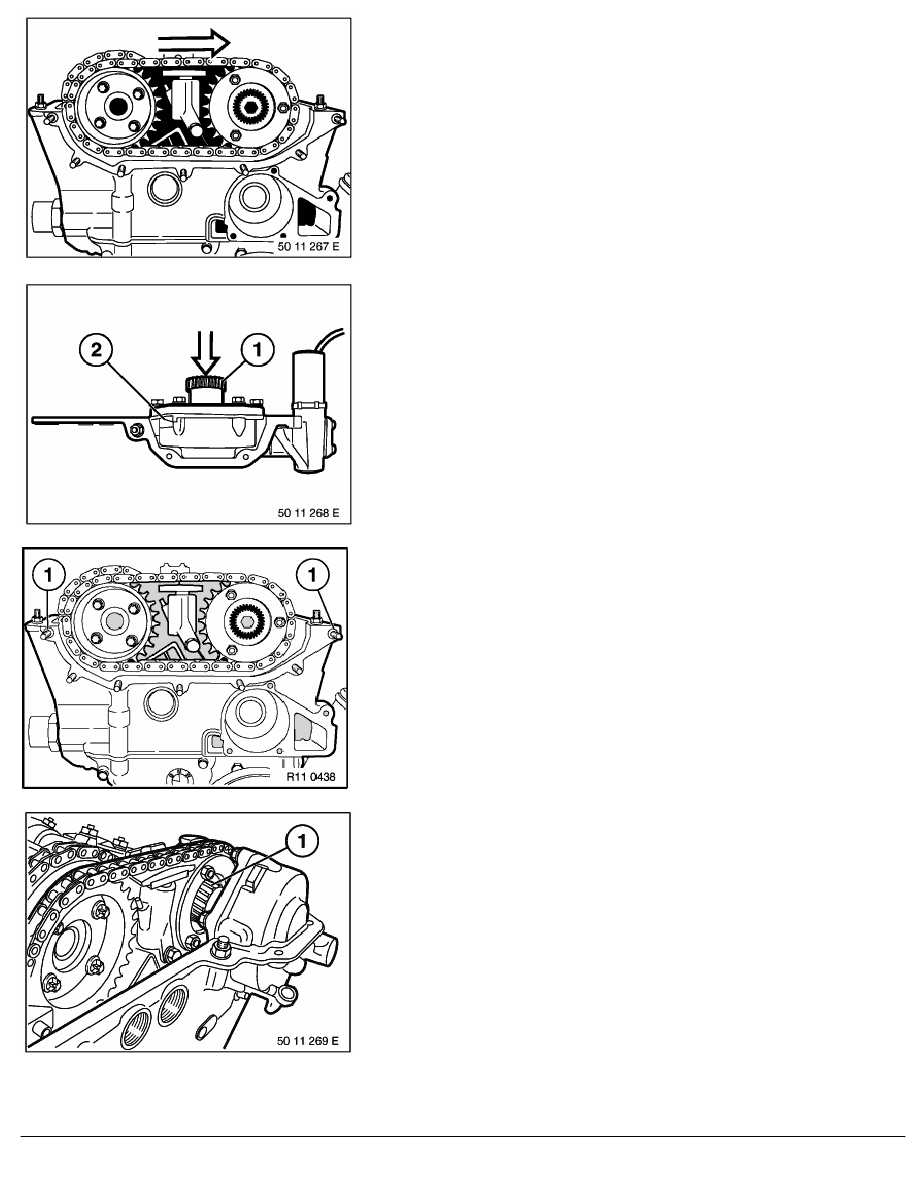

Turn sprockets with mounted secondary chain clockwise as far as
stop.
Press back spline shaft on adjustment unit (1) as far as detent in
housing (2).
Pay attention to adapter sleeves (1).
Seal contact surface edges of separating face between cylinder
head and VANOS adjustment unit with Drei Bond 1209 sealing
compound (refer to BMW Parts Service).
Replace seal.
Fit VANOS adjustment unit.
Rotate spline shaft (1) until internal spline engages.
RA Removing and installing or replacing VANOS adjustment unit (M52/S52)
