3 Series E36 M coupe (S52) COUPE

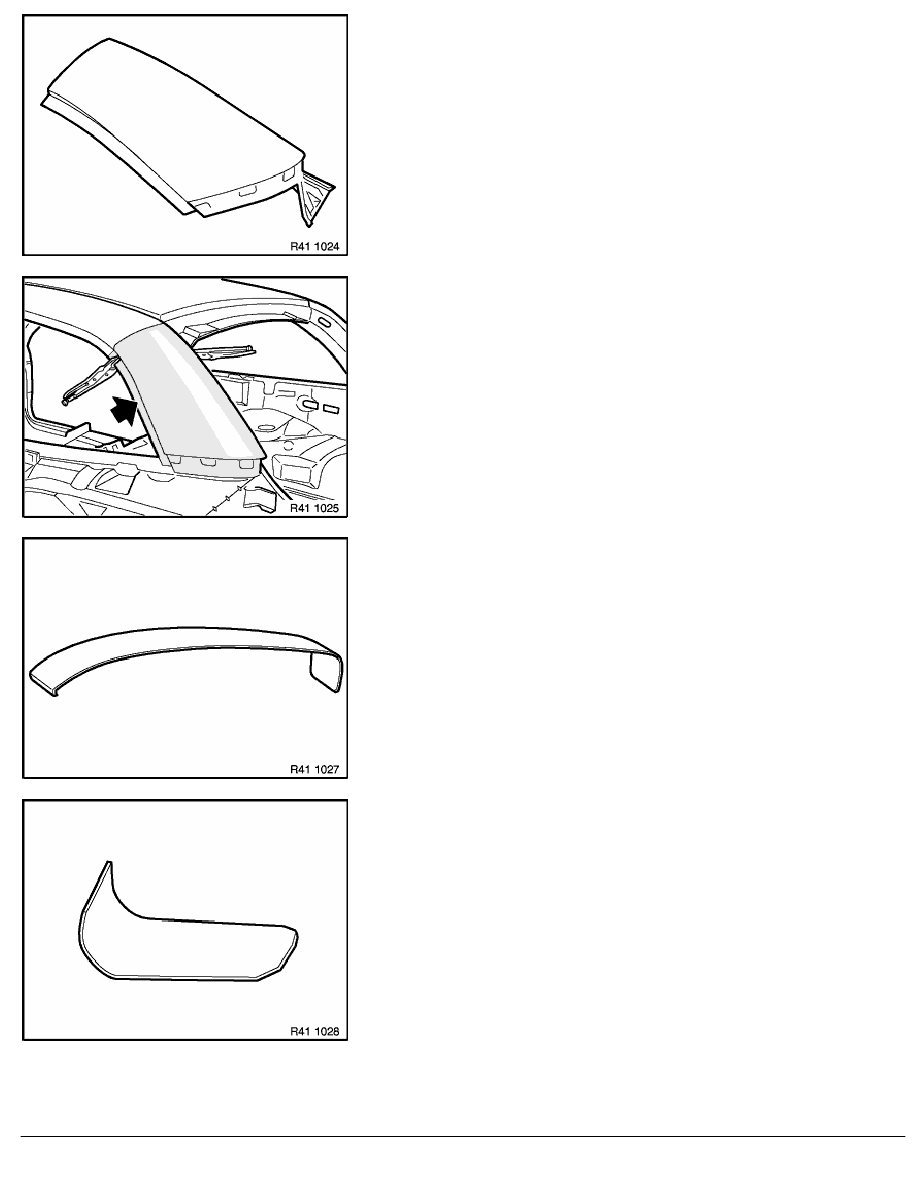

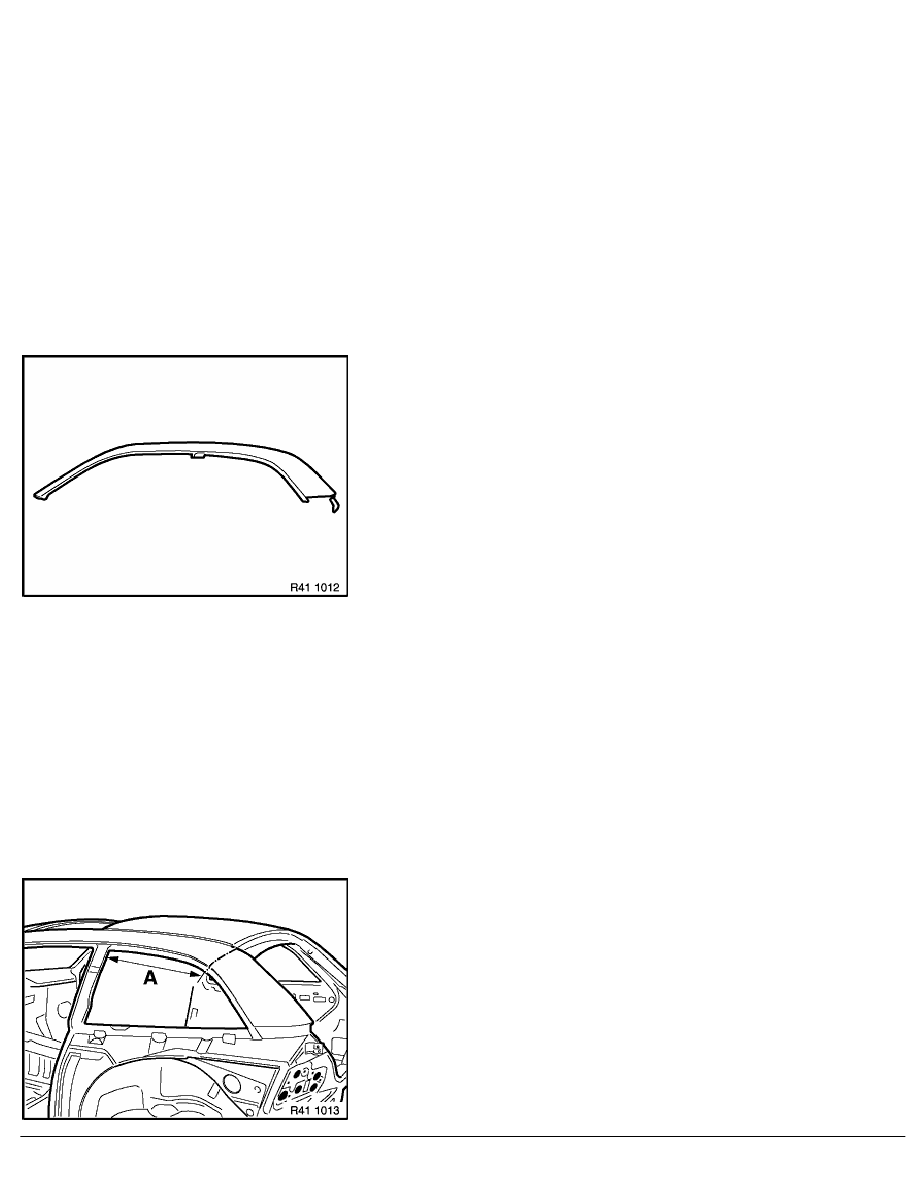

Outside roof frame, cut to size.
Fit outside roof frame, cut to size.
Manufacture and fit reinforcement plate for mating surface for
outside roof frame/C-pillar from remaining sheet metal.
Width = approx. 40 mm
Coat reinforcement plate with zinc dust paint.
Manufacture and fit reinforcement plate for mating surface for
outside roof frame/water gutter from remaining sheet metal.
Width = approx. 40 mm
Coat reinforcement plate with zinc dust paint.
RA Replacing left or right roof frame (partial replacement, C-pillar) (Z3 Coupé)
