Replacing all switches and indicator lamps in
centre console (Z3 roadster, Z3 coupé)

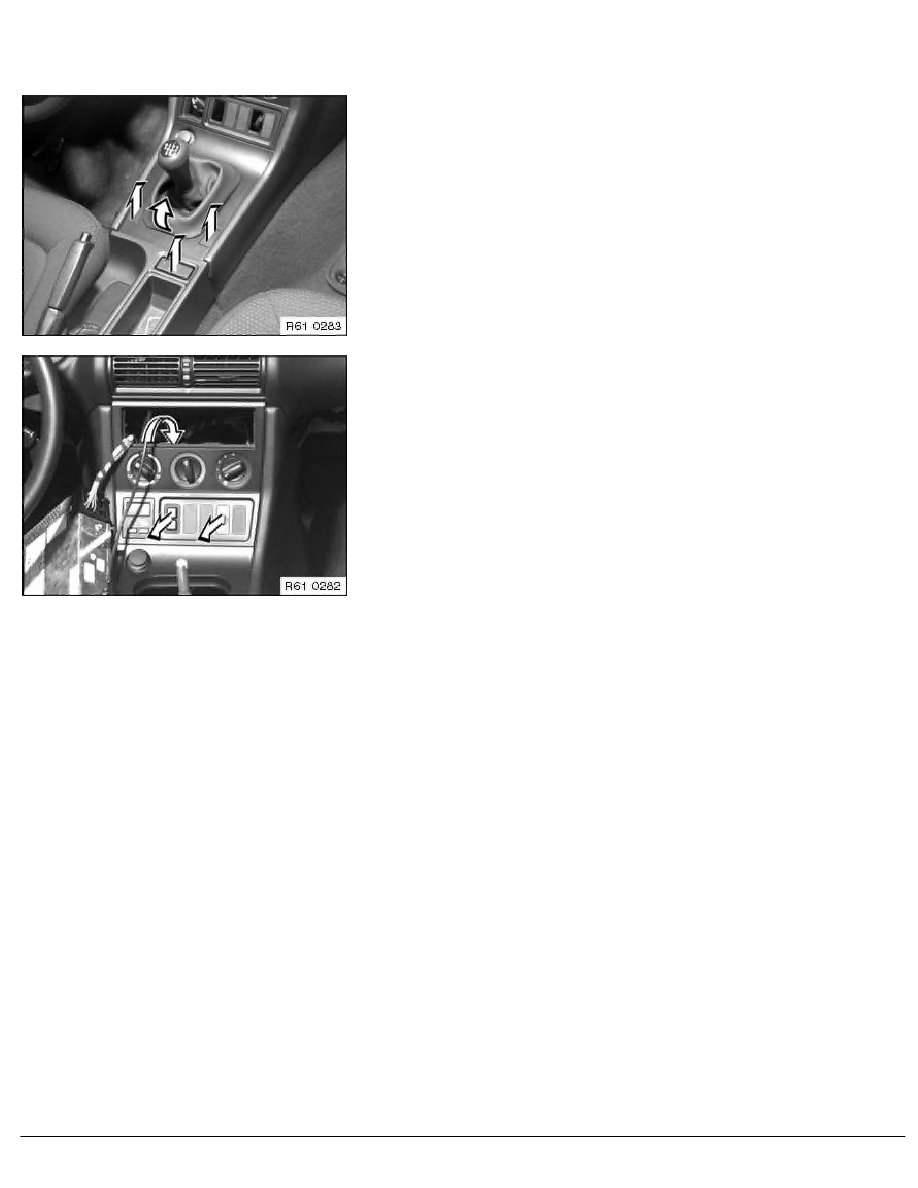

Unclip shift-lever cover.
Remove insulation sheet.
Carefully press hazard warning light switch or window regulator
switch downwards to remove from trim.
Disconnect connector.
Remove radio finisher or, if necessary, radio,
refer to 65 11 030
Push a/c switch or indicator lamp forwards through radio aperture
to unclip and remove connector.
