3 Series E36 M coupe (S54) COUPE
Inlet side:
Note:

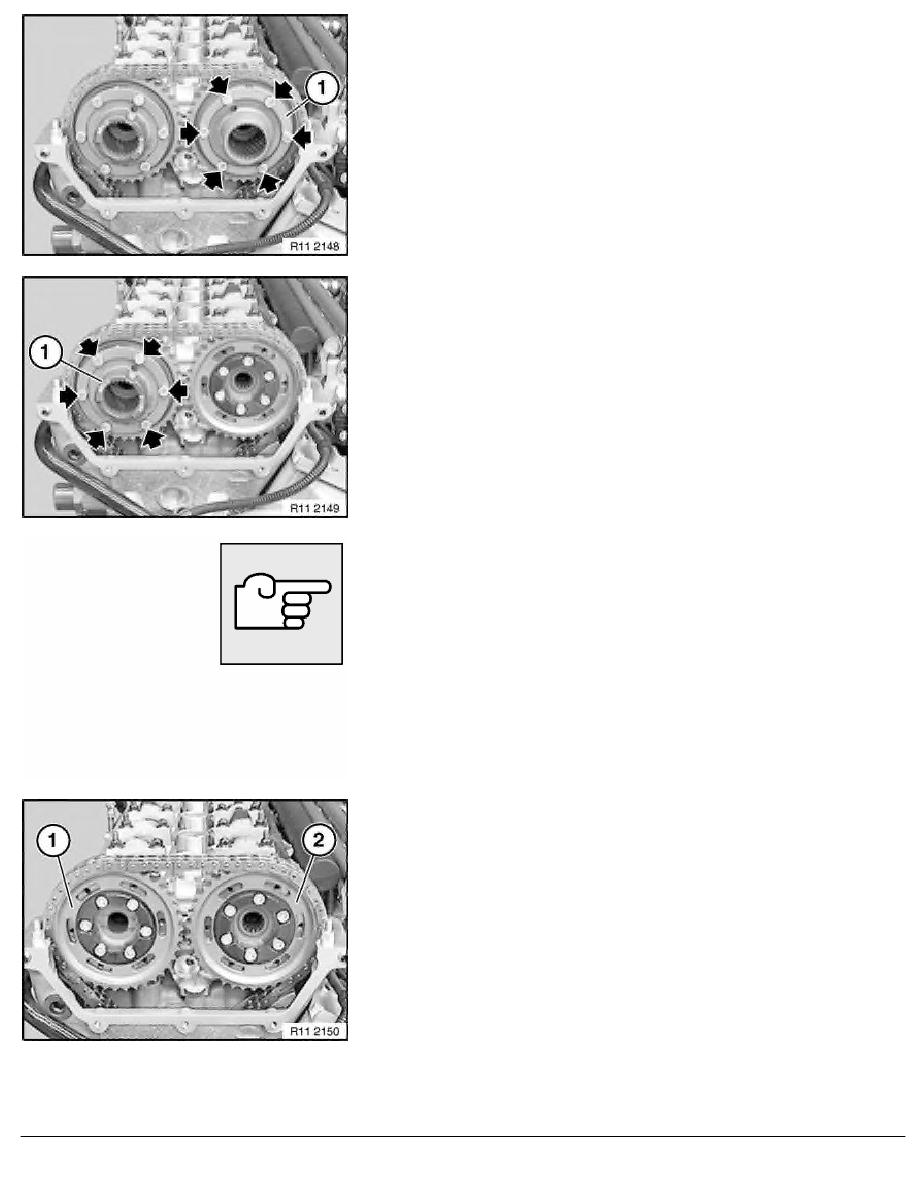

The spline hub (1) accommodates a plate spring and a
supporting ring.
Take care: the supporting ring can easily fall out when removed.
Remove slackened screws on inlet side.
Remove spline hub (1) with plate spring and supporting ring.
Exhaust side:
Note:
The spline hub (1) accommodates a plate spring and a
supporting ring.
Take care: the supporting ring can easily fall out when removed.
Remove slackened screws on exhaust side.
Remove spline hub (1) with plate spring and supporting ring.
Remove chain tensioning piston.
Detach sprocket wheel (1 and 2) from centering sleeve.
Hold timing chain under tension.
Feed out sprocket wheel (1 and 2).
Secure timing chain against slipping down.
