3 Series E36 M coupe (S54) COUPE

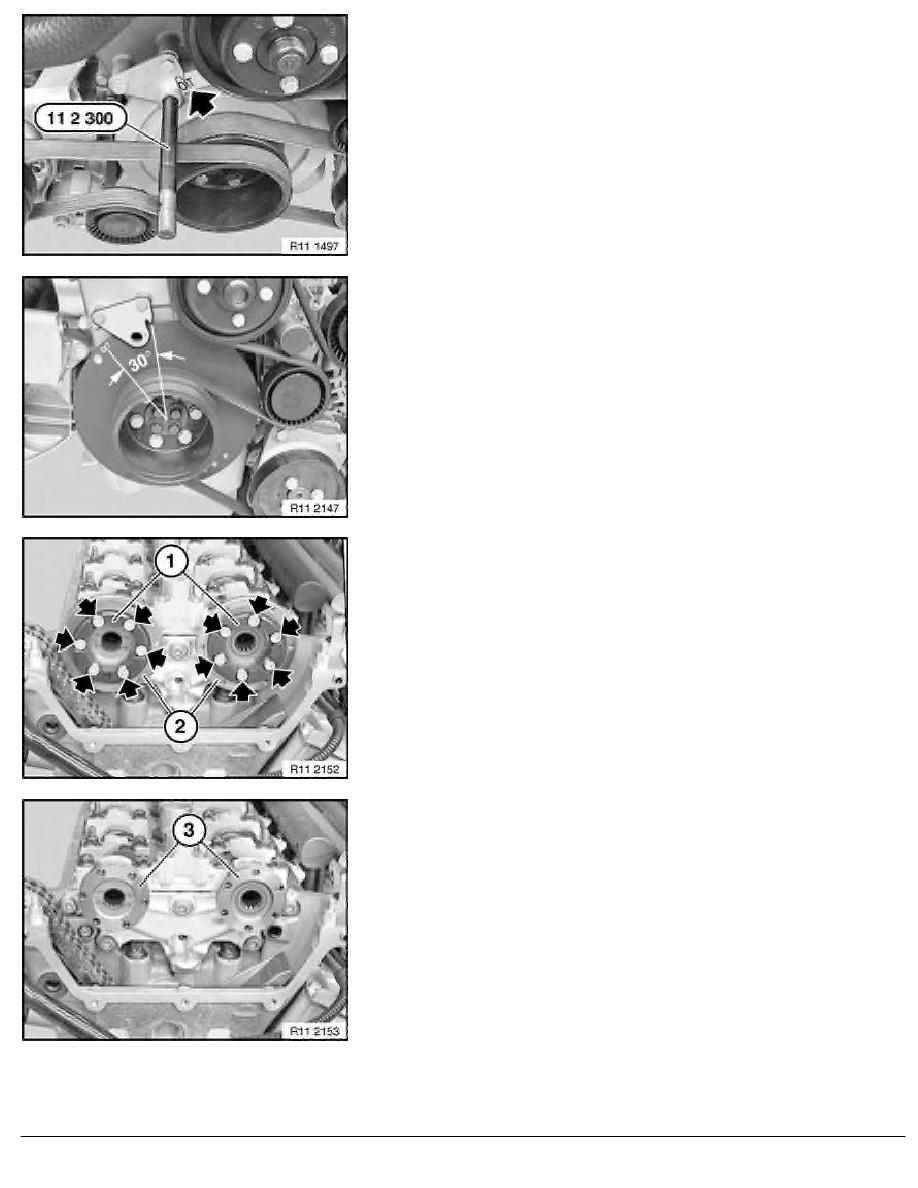

Remove special tool 11 2 300 .
Important!
No piston must be in the TDC position when the camshafts
are removed.
Lift timing chain and hold under tension.
Crank engine at central bolt against direction of rotation to 30
°
before TDC position.
Note:
This work step is only necessary if the camshafts are to be
replaced at a later stage.
Grip camshafts at hexagon head.
Release bolts on centering sleeves (1).
Remove centering sleeves (1) on exhaust and inlet sides with
thrust washers (2).
Note:
This work step is only necessary if the camshafts are to be
replaced at a later stage.
Withdraw toothed sleeves (3) from exhaust and inlet camshafts.
RA Replacing camshafts (S54)
