3 Series E36 M coupe (S54) COUPE
Then crank engine again in direction of rotation until 1st cylinder is
at TDC firing position.

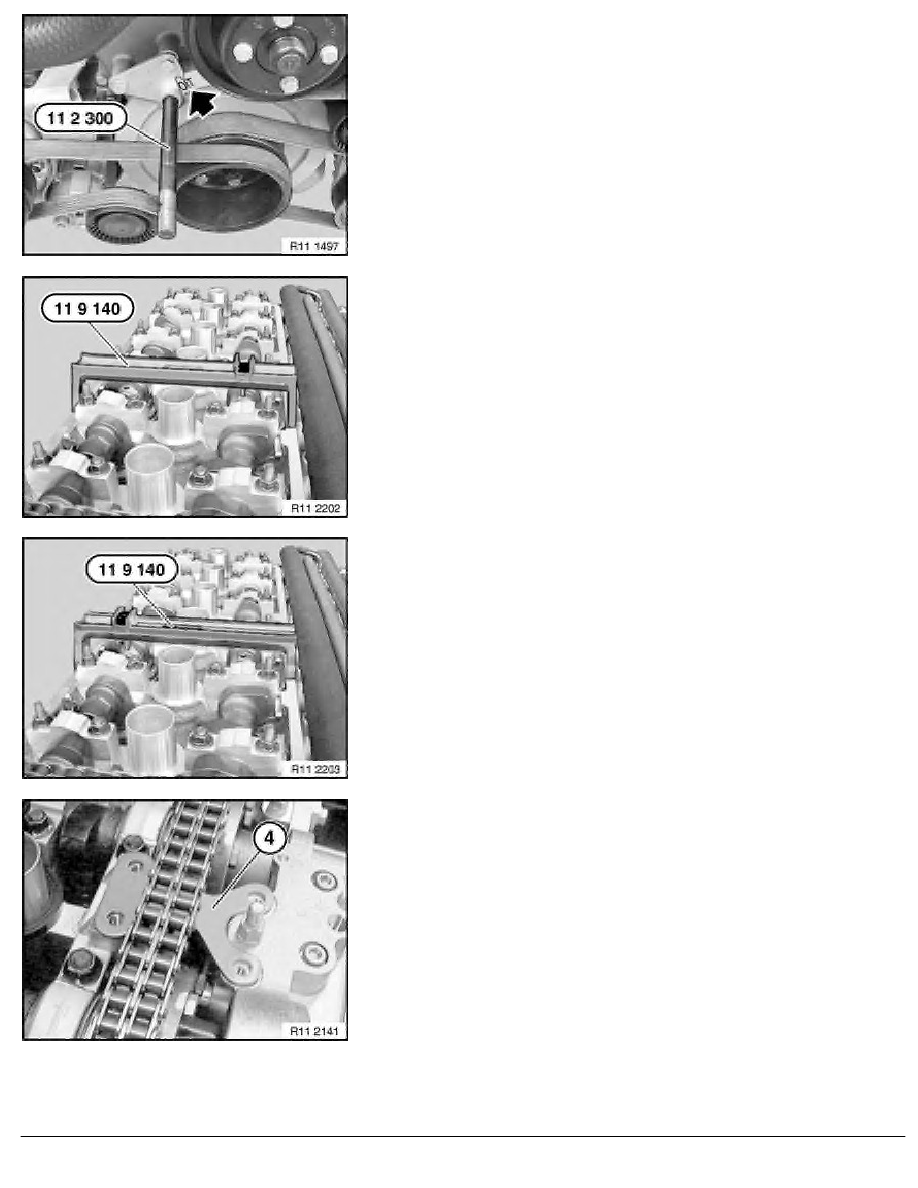

Secure vibration damper in position with special tool 11 2 300 .
Check camshaft setting:
Attach special tool 11 9 140 and join in inlet camshaft.
Note:
The inlet camshaft is correctly adjusted when special tool
11 9 140 rests flat on the cylinder head or protrudes by max. 0.5
mm to the exhaust side.
If the special tool 11 9 140 protrudes to the inlet side, the
timing must be readjusted.
Join special tool 11 9 140 in exhaust camshaft.
Note:
The exhaust camshaft is correctly adjusted when special tool
11 9 140 rests flat on the cylinder head or protrudes by max. 0.5
mm to the exhaust side.
If the special tool 11 9 140 protrudes to the inlet side, the
timing must be readjusted.
If necessary, adjust camshaft timing.
Note:
Check installed direction.
Install holder (4).
RA Replacing camshafts (S54)
