3 Series E36 M coupe (S54) COUPE

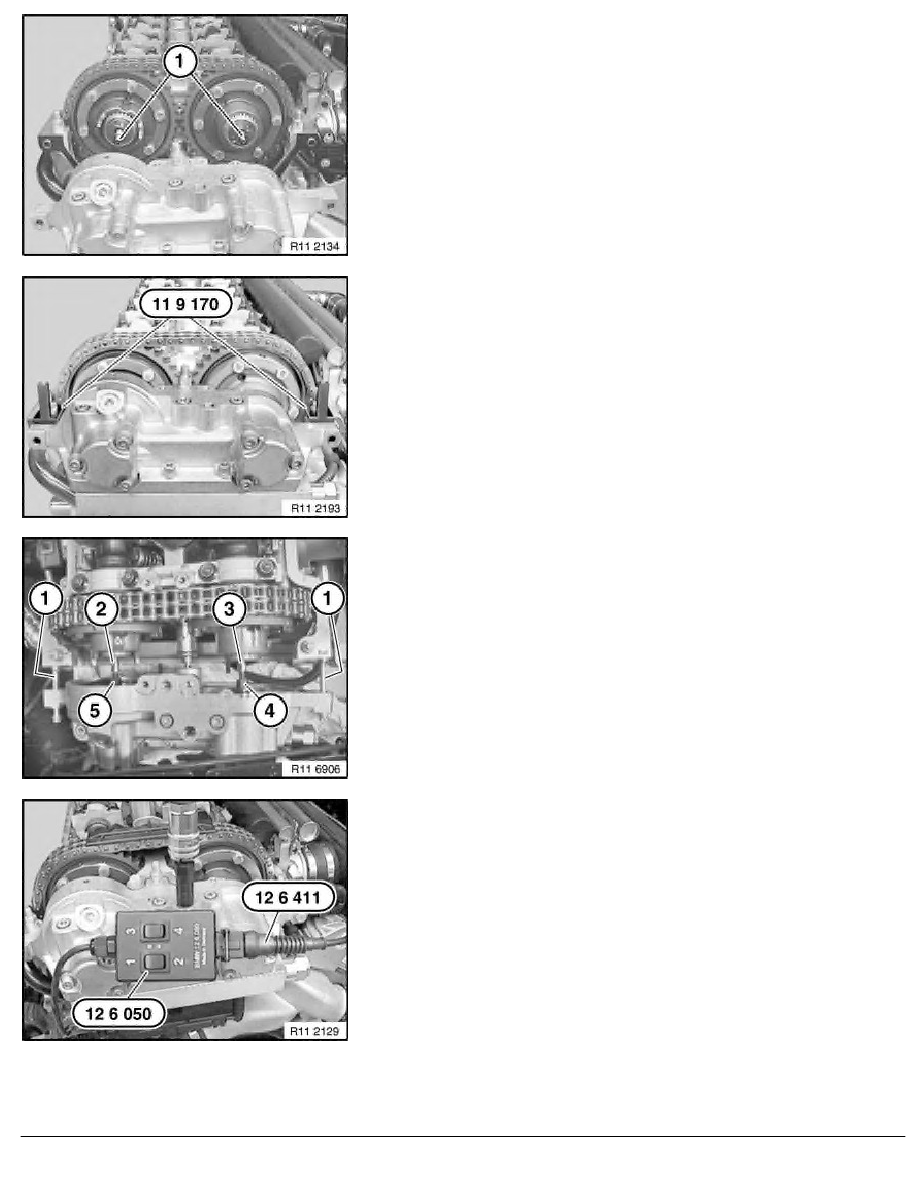

Place VANOS adjustment unit on toothed shafts (1).
Attach special tool 11 9 170 on cylinder head on left and right.
Insert M6x60 bolts (1).
Installation:
If the union nuts are not accessible.
Attach special tool 11 7 130 and connect a compressed air
supply of 2 to 8 bar.
Briefly actuate buttons 2 and 4 on special tool 11 6 050 .
Both pistons on the VANOS adjustment unit must now be
extended (advanced setting).
Important!
Risk of damage to the VANOS adjustment unit.
