3 Series E36 M coupe (S54) COUPE
11 41 000
Removing and installing/replacing oil sump
(S54)

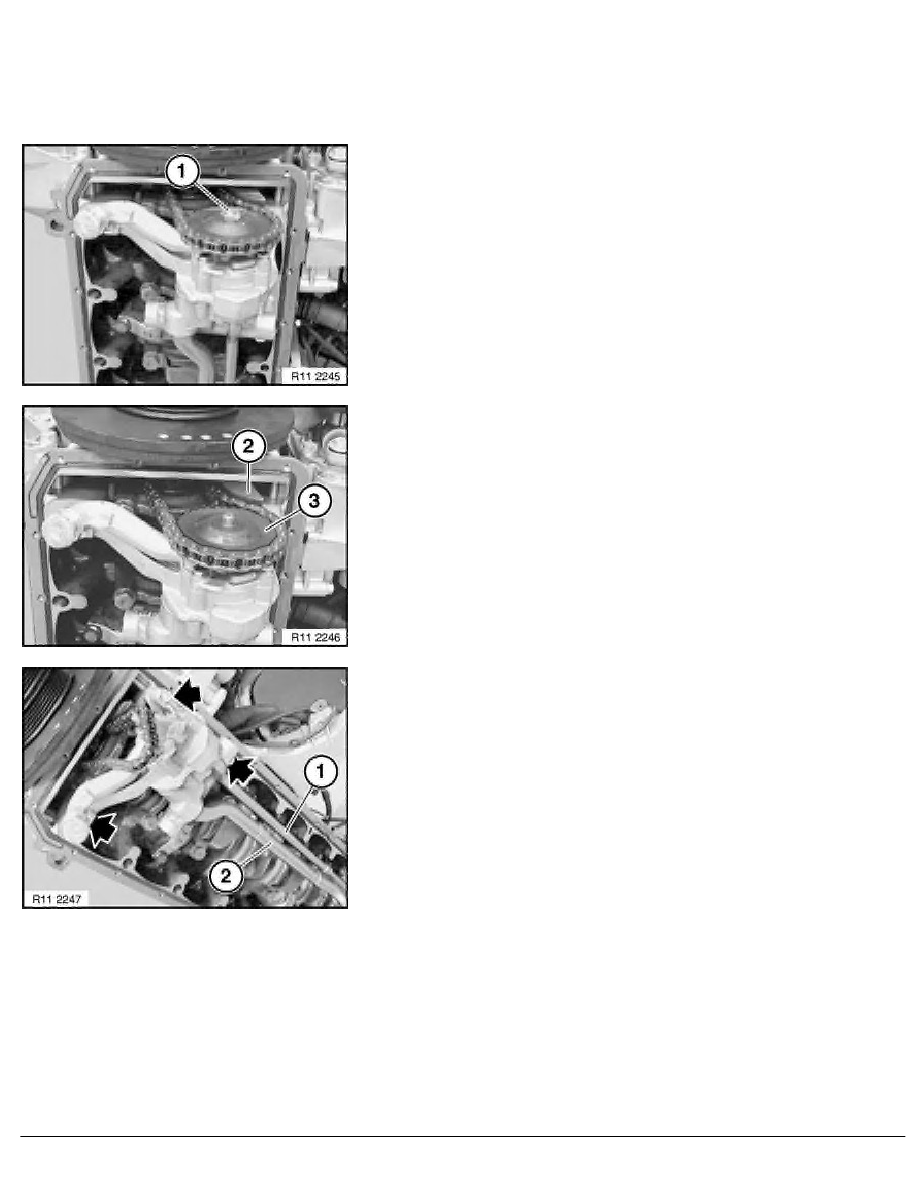

Unscrew oil sump.
Caution!
Left-hand threads.
Unscrew nut (1).
Installation:
Tightening torque 11 41 4AZ.
Press back chain tensioner (2).
Detach sprocket wheel (3) from teeth. Feed out sprocket
wheel (3).
Installation:
Align teeth of sprocket wheel and oil pump shaft to each other.
Remove return pipe (1) and suction pipe (2).
Remove oil pump.
Installation:
Replace O-ring on suction pipe (2).
RA Removing and installing/replacing oil sump (S54)
