3 Series E36 M coupe (S54) COUPE
11 51 000
Removing and installing/replacing water
pump (S54)

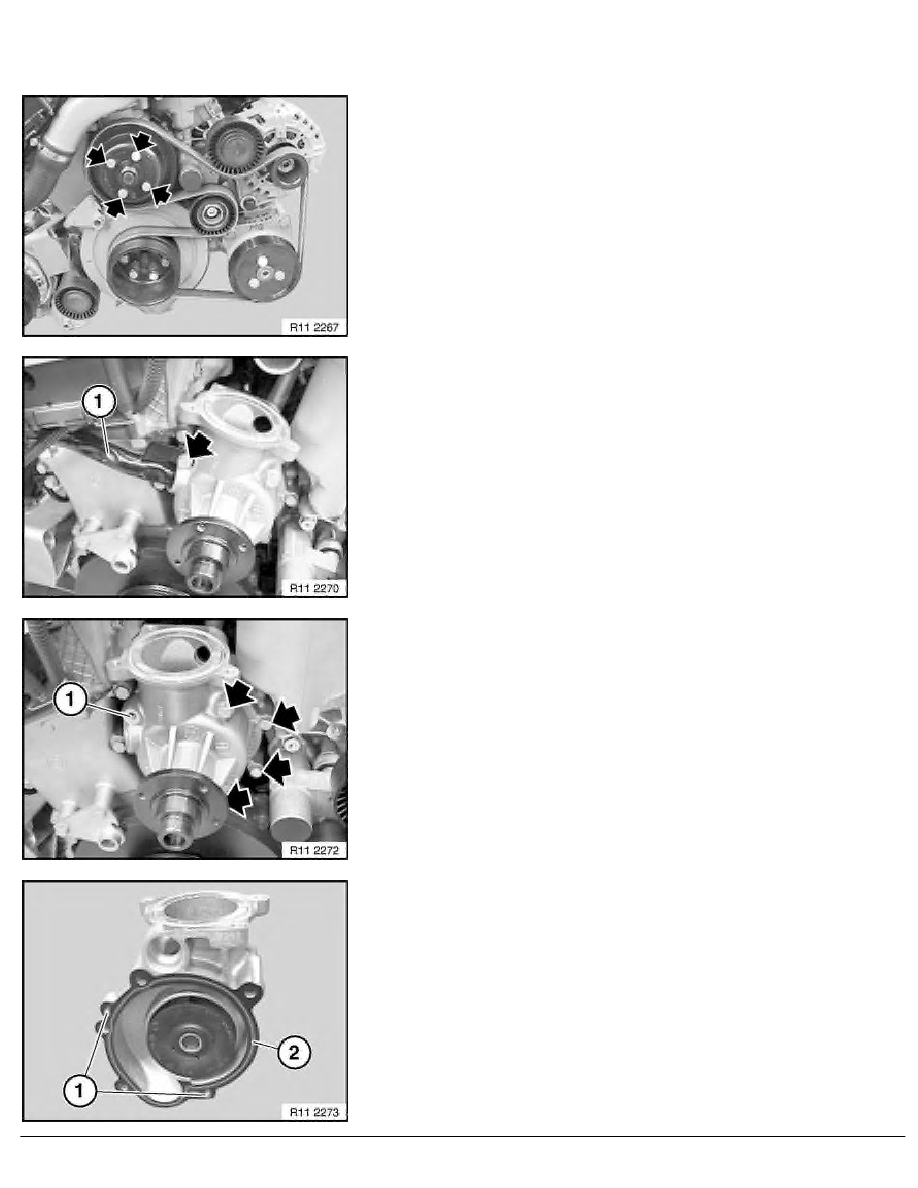

Release water pump belt pulley.
Remove alternator drive belt.
Remove pulley from water pump.
Remove coolant thermostat.
E46 only
Note:
Pipe (1) is also screwed on exhaust side to cylinder head.
Release screws and remove pipe (1).
Installation:
Replace O-ring on pipe (1).
Water pump is secured with 5 screws to engine block.
Z3 version:
Also release screw at position (1).
Release screws and remove water pump.
Installation:
Check dowel pins (1) for damage and correct installation position.
Keep sealing faces clean and free of oil.
Replace seal (2).
RA Removing and installing/replacing water pump (S54)
BMW AG - TIS
09.02.2013 18:00
Issue status (12/2007) Valid only until next DVD is issued
