Adjusting Glass Tilt Roof Cover for 3 Series E36 M Coupe (S54) - Page 1834

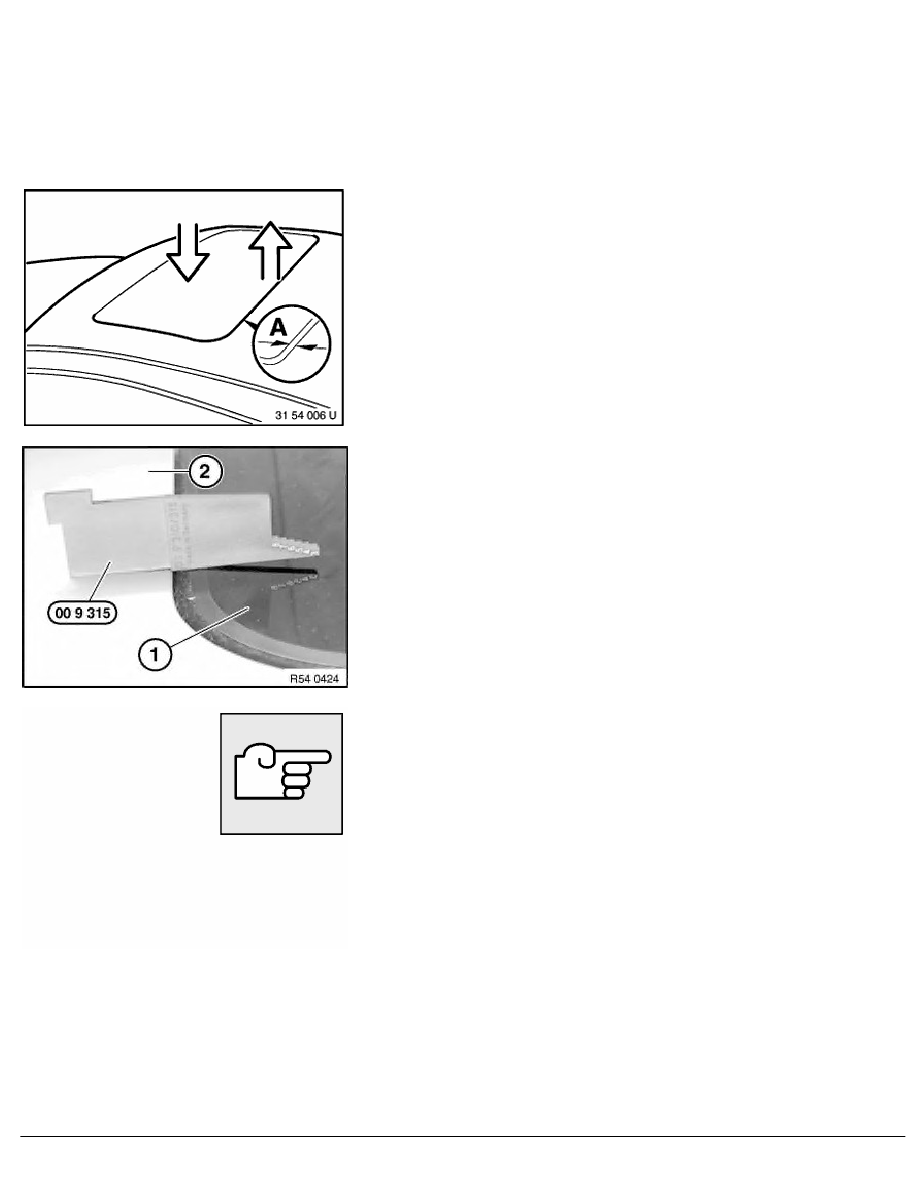

Adjustment, rear:
Press roof liner down a little and slacken screws (1) (do not
release).
Balancing vertical deviation upwards:
Insert washer (available in 1 mm thickness, U-shape) between
glass roof frame and cover kinematics.
Installation:
Tightening Torque,
refer to Technical Data 54 10 2AZ.
Adjustment, front:
Slacken screws (1) (do not release).
Balance vertical deviation at cover mount (2).
Note:
If the cover cannot be adjusted further downwards:
Release screws (1) and remove shoehorn hinge (2).
Installation:
Tightening Torque,
refer to Technical Data 54 10 3AZ.
Grind off cover mount (1) at contact surface (2).
Note:
Boss (3) must not be ground.
Installation:
Protect ground surface (2) against rust (priming).
Before installing glass roof cover:
Coat contact surface (4) with door brake lubricating grease
"Renax GL2" (sourcing reference: BMW Parts Service).
Caution!
Check that glass roof cover is securely seated.
Press glass roof cover at front/rear, left/right with palms of
hands from bottom upwards.
Glass roof cover must not be able to be raised upwards.
RA Adjusting glass tilt roof cover (Z3 Coupé, M Coupé)
