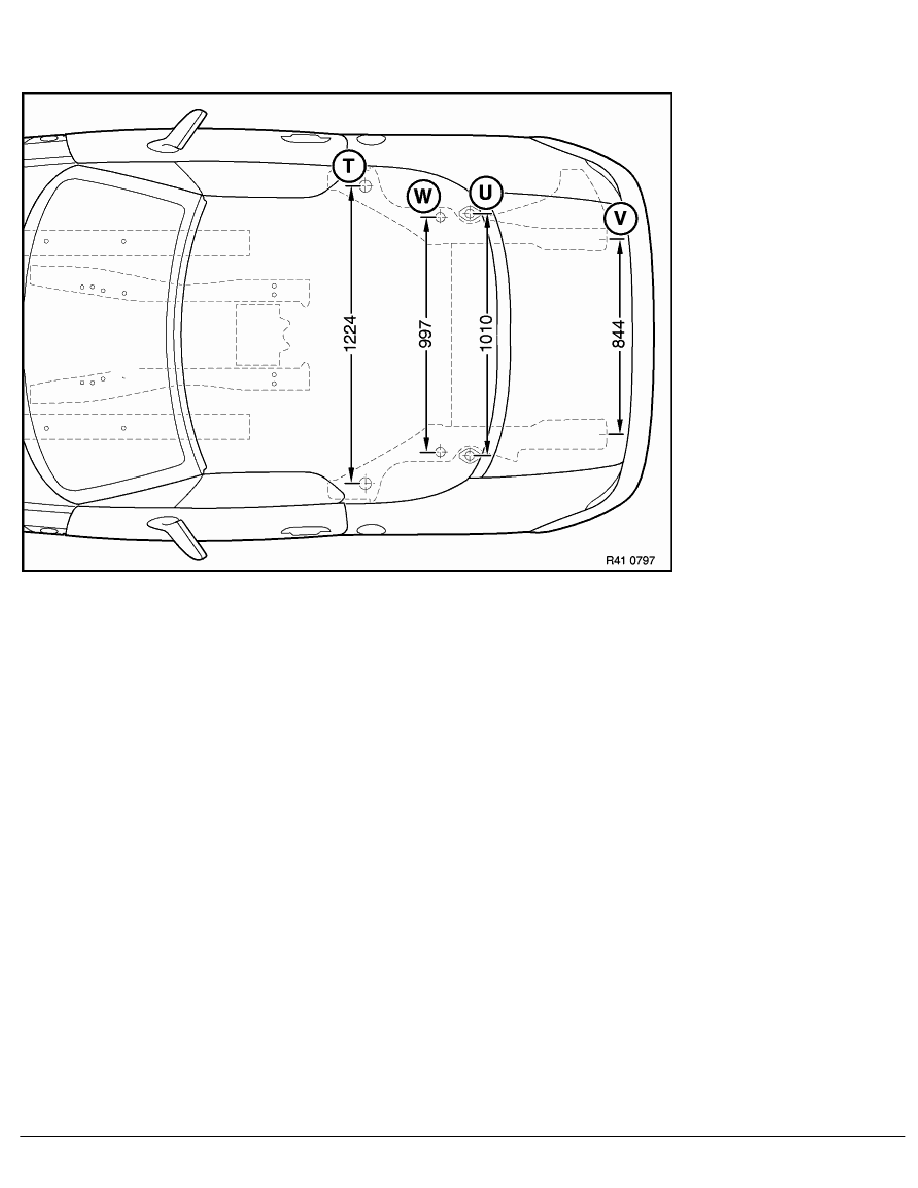

Frame alignment control dimensions, body, top view, rear end structure BMW E 36 Z3
Roadster / Coupé
T
Bush of rear axle mount
U
Supports for shock absorber
W
Rear spring support (spring seat)
V
Impact absorber support, rear
Dimensions in mm
Tolerance: dimension over 1000 mm
±
2.0 mm
Tolerance: dimension up to 1000 mm
±
1.0 mm
Note:
Only use the indicated values for a rough inspection.
Repairs can only be carried out correctly with the approved set of attachments and with straightening bench.
RA Frame alignment control dimensions, body, top view, rear end structure BMW E 36
