3 Series E36 M roadst (S50) ROADST
Version (C):
With rollover protection bar, with "Harman-Kardon" Hifi system:
Removing and installing loudspeaker box,
refer to 65 13 300

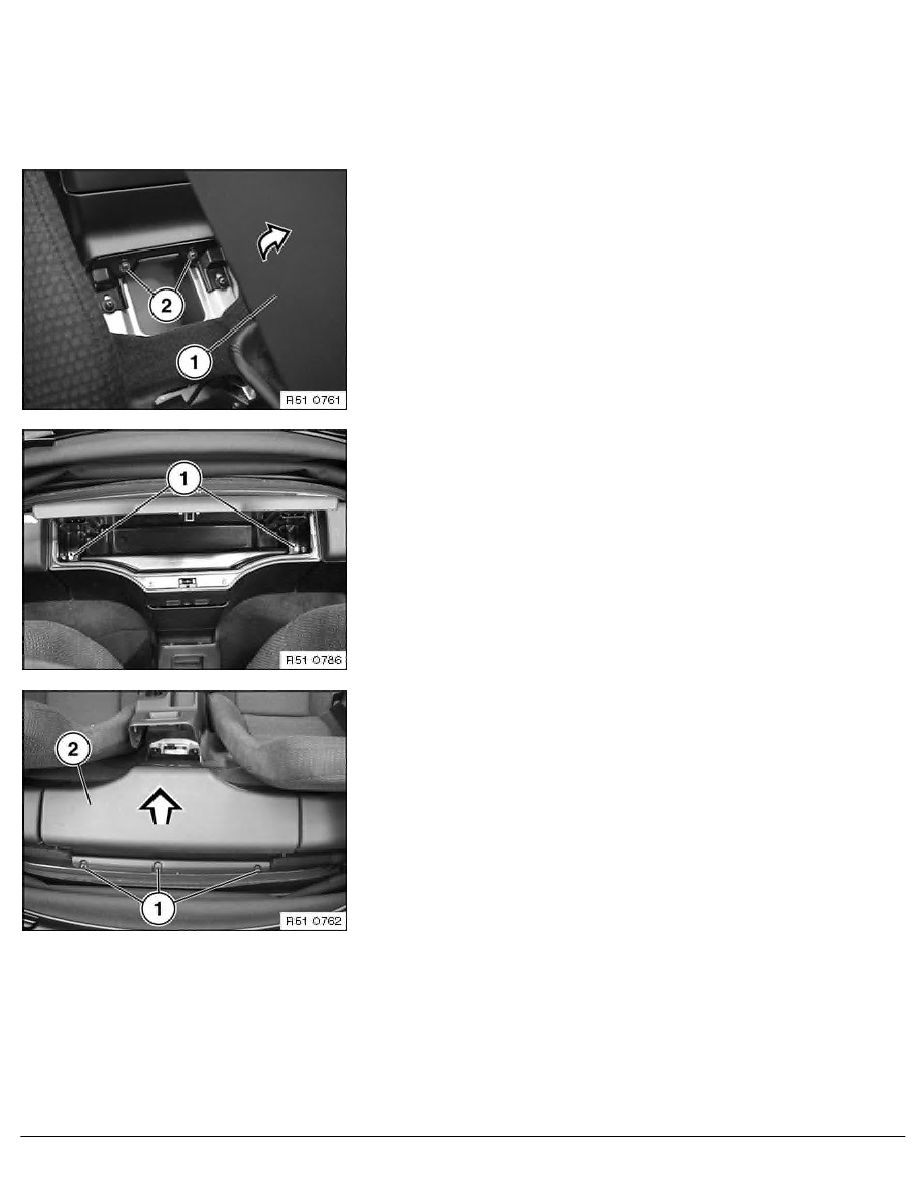

Unclip cover (1) upward.
Removing and installing left and right rollover protection bar,
refer to 54 61 001
Lift out detent (1) and pull off finisher strip (2) (lock) upward.
Installation:
Glue on seal (3) if necessary.
Version (C):
With rollover protection bar, with "Harman-Kardon" Hifi system:
Lift out covers (1) and unfasten screws. Unfasten screws (2) and
take off oddments box upward.
RA Removing and installing rear oddments box (Z3 Roadster, M Roadster)
