Removing and installing / replacing bracket
for left or right rollover protection bar (Z3
Roadster, M Roadster)
Removing and installing rear left or right lower section of
side trim,
refer to 51 43 015
Version with Harman-Kardon Hifi system:

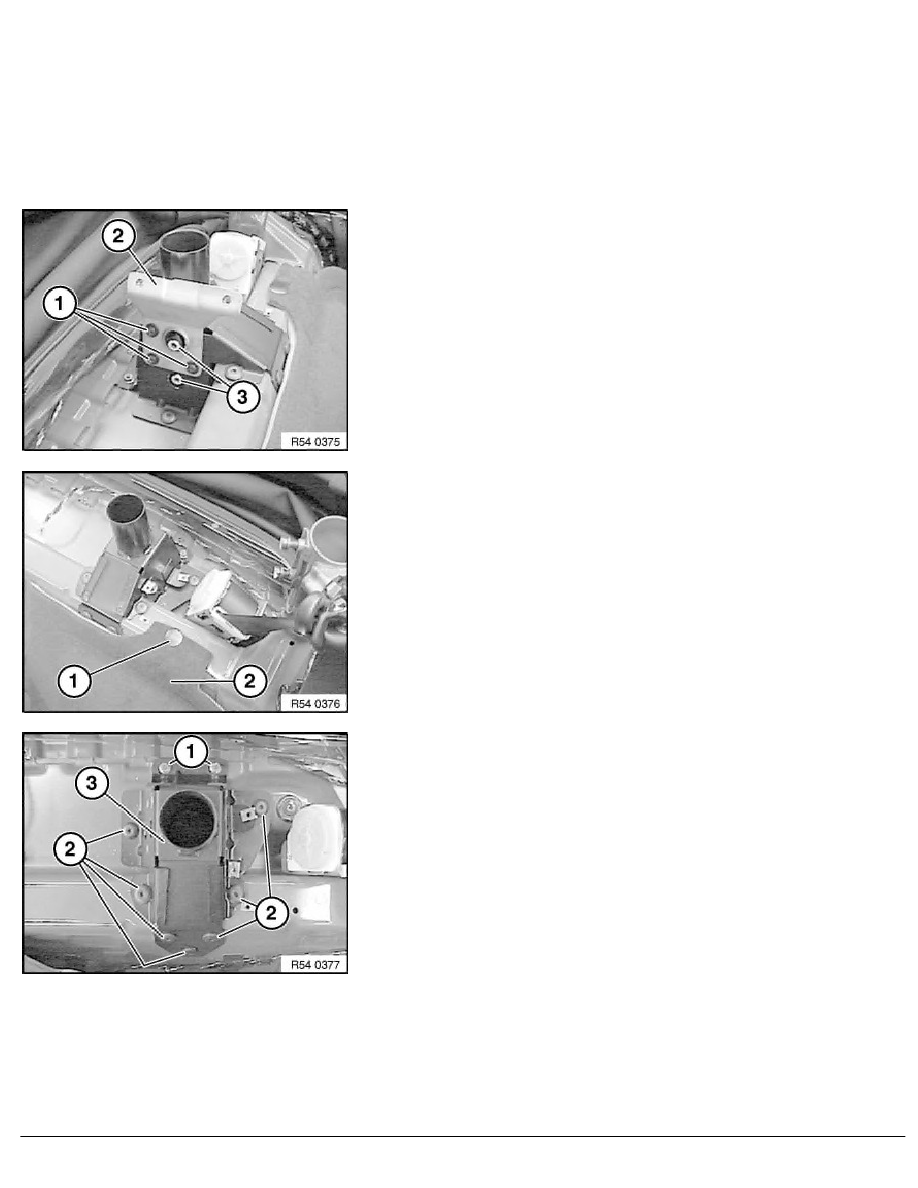

Unfasten screws (1) and remove bracket (2).
Replace screws (3).
Unfasten clip (1).
Unfasten nuts (1).
Tightening torque, refer to Technical Data 54 61 2AZ
Unfasten screws (2).
Tightening torque, refer to Technical Data 54 61 3AZ
Remove bracket (3) for rollover protection bar.
