3 Series E36 M roadst (S52) ROADST
11 12 000

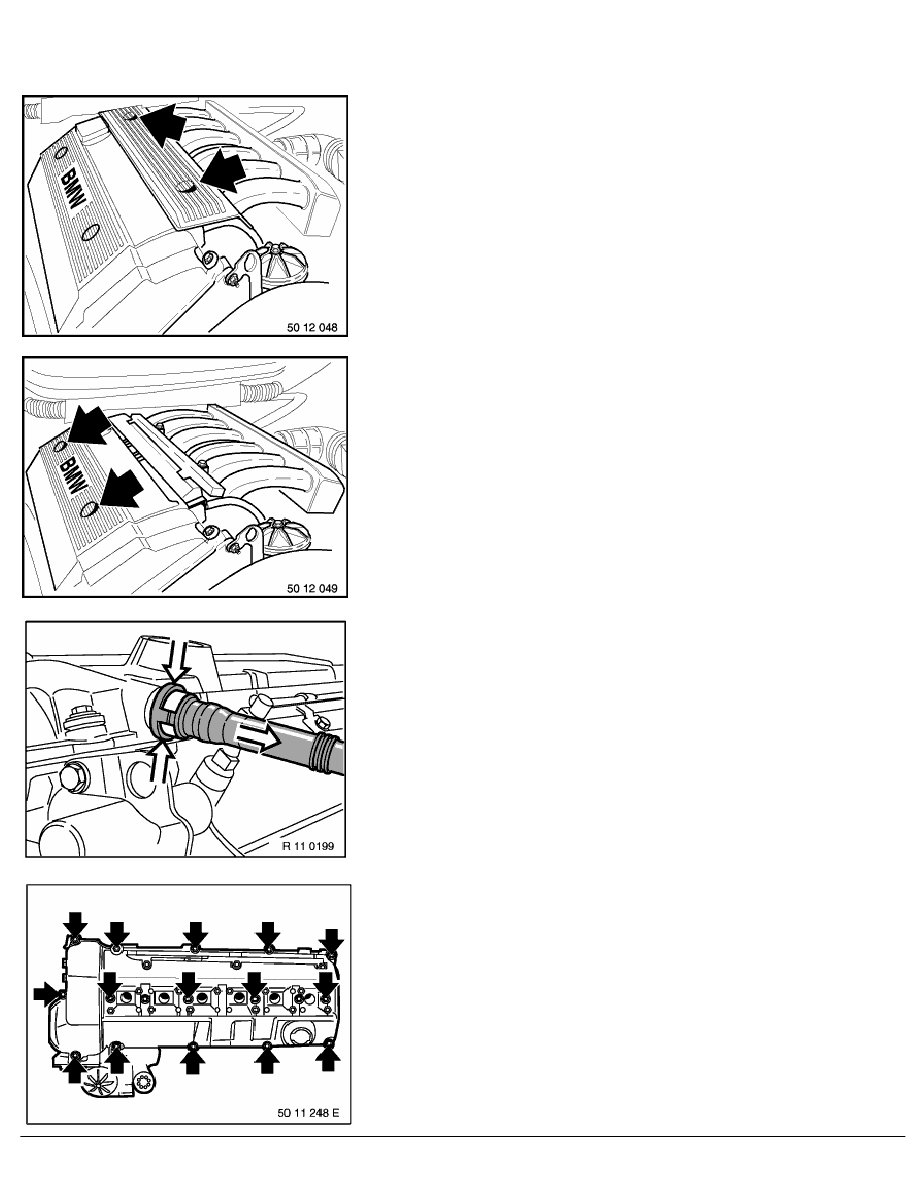

Removing and installing / sealing cylinder
head cover (M52 / S52 / S50US)
Remove cover from injection valves.
Remove cover from cylinder head cover.
Pull cylinder head cover forwards to remove.
Removing ignition coils.
Unclip vent connection.
Remove cylinder head cover.
RA Removing and installing / sealing cylinder head cover (M52 / S52 / S50US)
