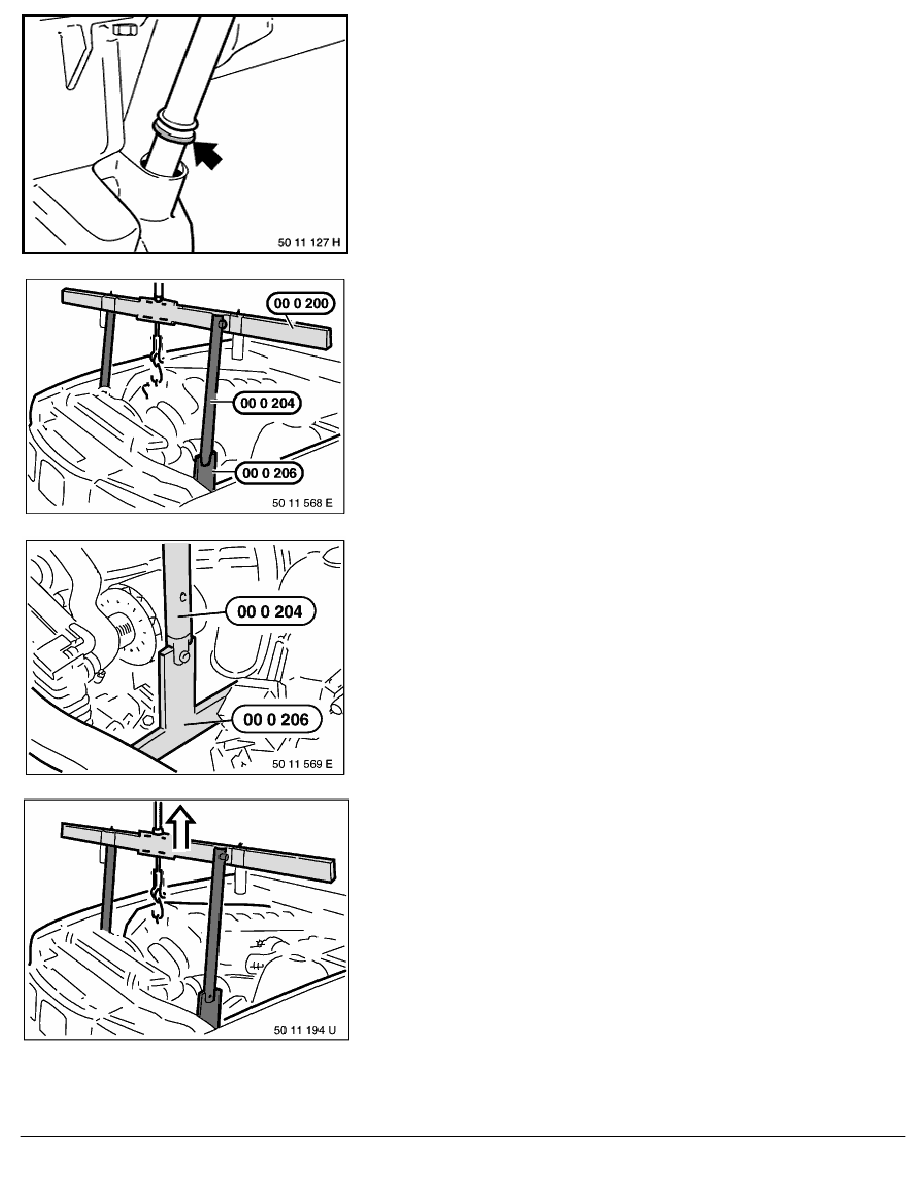

Installation:

Replace O-ring.

Prepare special tool 00 0 200, consisting of special tool
00 0 201/202/204/206.

Unclip oil lines for power steering unit from bracket on engine
support and place to one side.

Fit special tool 00 0 206 to engine mounting.

Carefully lift engine approx. 5 mm.

RA  Removing and installing oil sump (M52 / S52 / M52TU / M54)

BMW AG - TIS

09.02.2013  18:57

Issue status (12/2007) Valid only until next DVD is issued
