3 Series E36 M roadst (S52) ROADST

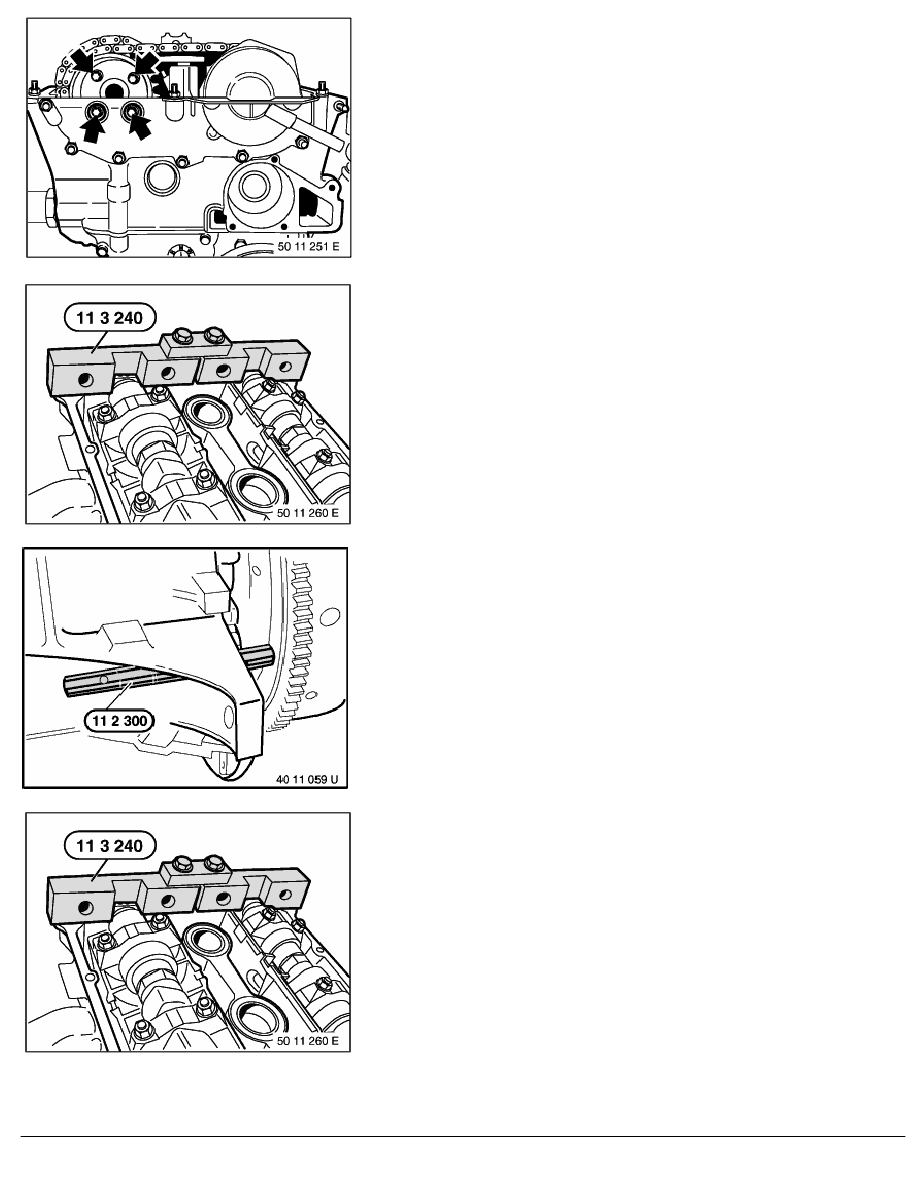

Tighten sprocket on exhaust camshaft in two passes.
Tightening torque,
refer to Technical Data 11 31 3AZ
Remove special tool 11 3 240.
Remove special tool 11 2 300.
Rotate engine twice, then check camshaft adjustment.
Secure crankshaft with special tool 11 2 300 in TDC position of
1st cylinder.
Caution!
Do not turn the engine back.
Remove special tool 11 2 300 before switching on the
engine.
Apply special tool 11 3 240 on camshafts.
The camshaft setting is OK if special tool 11 3 240 locates flush
against the cylinder head.
Remove special tool 11 3 240.
RA Adjusting camshaft timing (M52/S52)
