3 Series E36 Z3 (M44) ROADST
11 13 000
Removing and installing, sealing or replacing
oil pan (M44)
Note:
For removal of oil pan, front axle support must be lowered.
There is no need to perform a front axle alignment check.
Draining off engine oil,
refer to 00 00 249

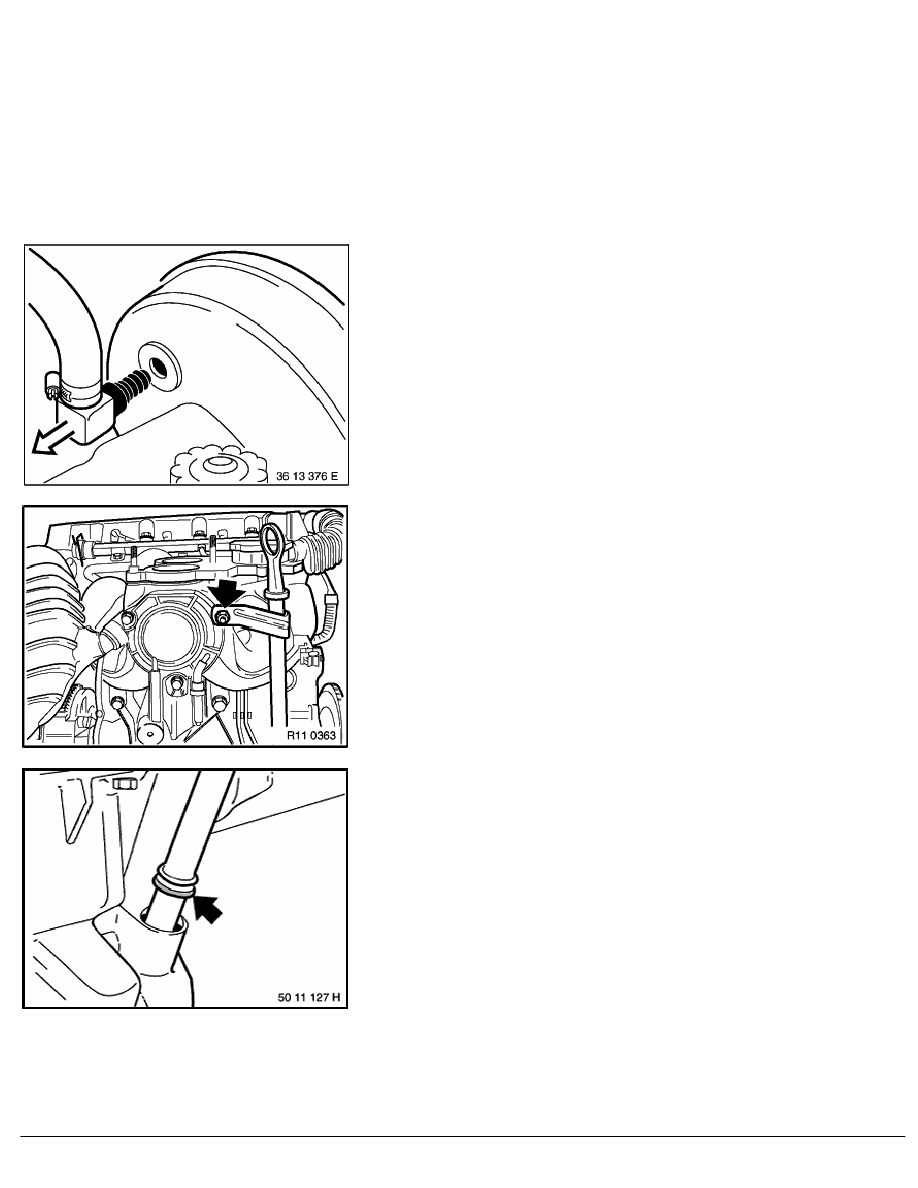

Disconnect adapter from brake booster.
Loosen guide pipe for dipstick.
Installation:
Check/replace sealing ring.
RA Removing and installing, sealing or replacing oil pan (M44)
BMW AG - TIS
10.02.2013 22:32
Issue status (12/2007) Valid only until next DVD is issued
