3 Series E36 Z3 (M44) ROADST

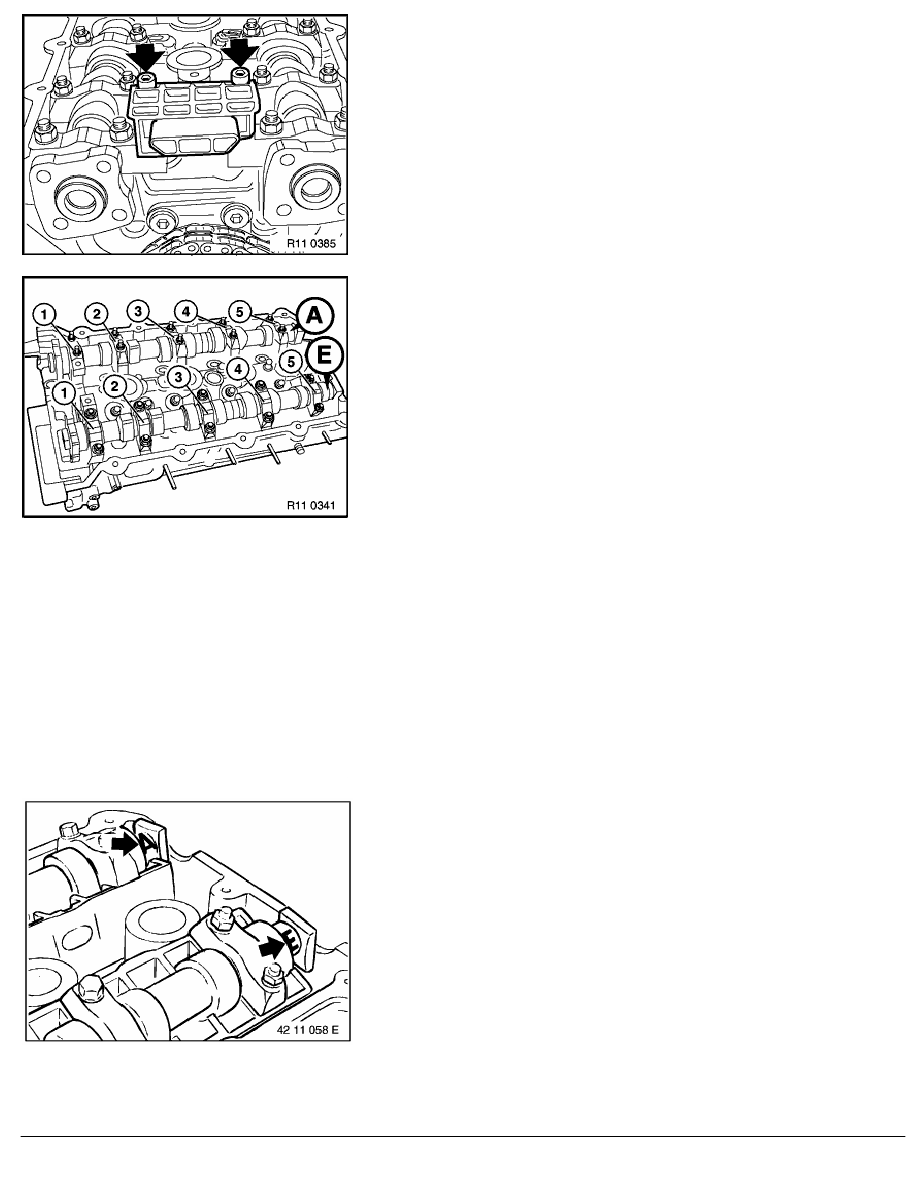

Release the chain guide.
Release the bearing cover and lay aside in correct order.
Lift out camshaft.
Installation
Installation of the camshaft is described separately from removal.
Assembly sequence differs between removal and installation.
Install camshaft.
Note:
The camshafts are designated each with a cast letter.
(A) for exhaust camshaft.
(E) for intake camshaft.
RA Replacing camshaft (M44)
