3 Series E36 Z3 (M44) ROADST

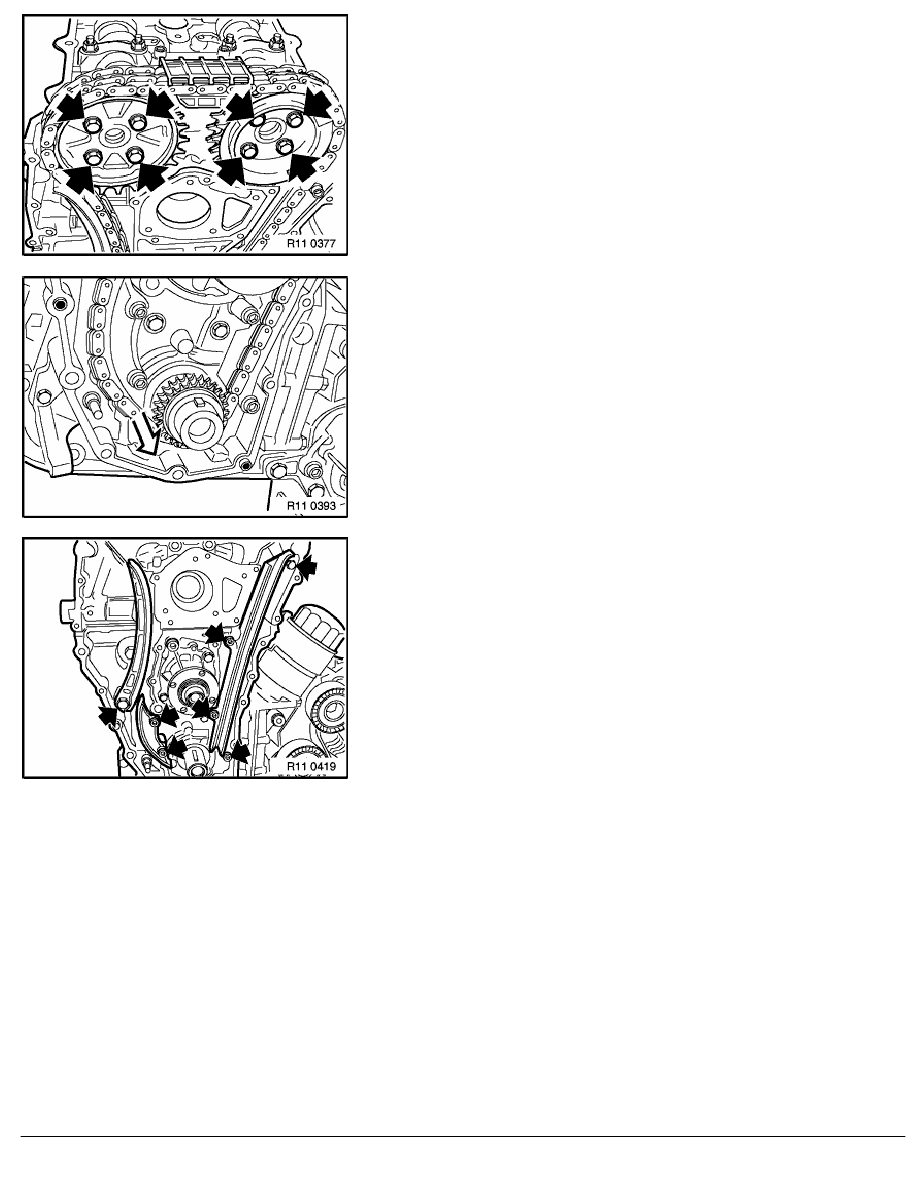

Remove the chain wheels.
Remove timing chain sprocket with timing chain from camshaft.
If necessary, replace the slide and tensioning rails.
Release the slide and tensioning rails.
Installation
Fitting and removal are described separately.
RA Replacing timing chain (M44)
