3 Series E36 Z3 (M44) ROADST

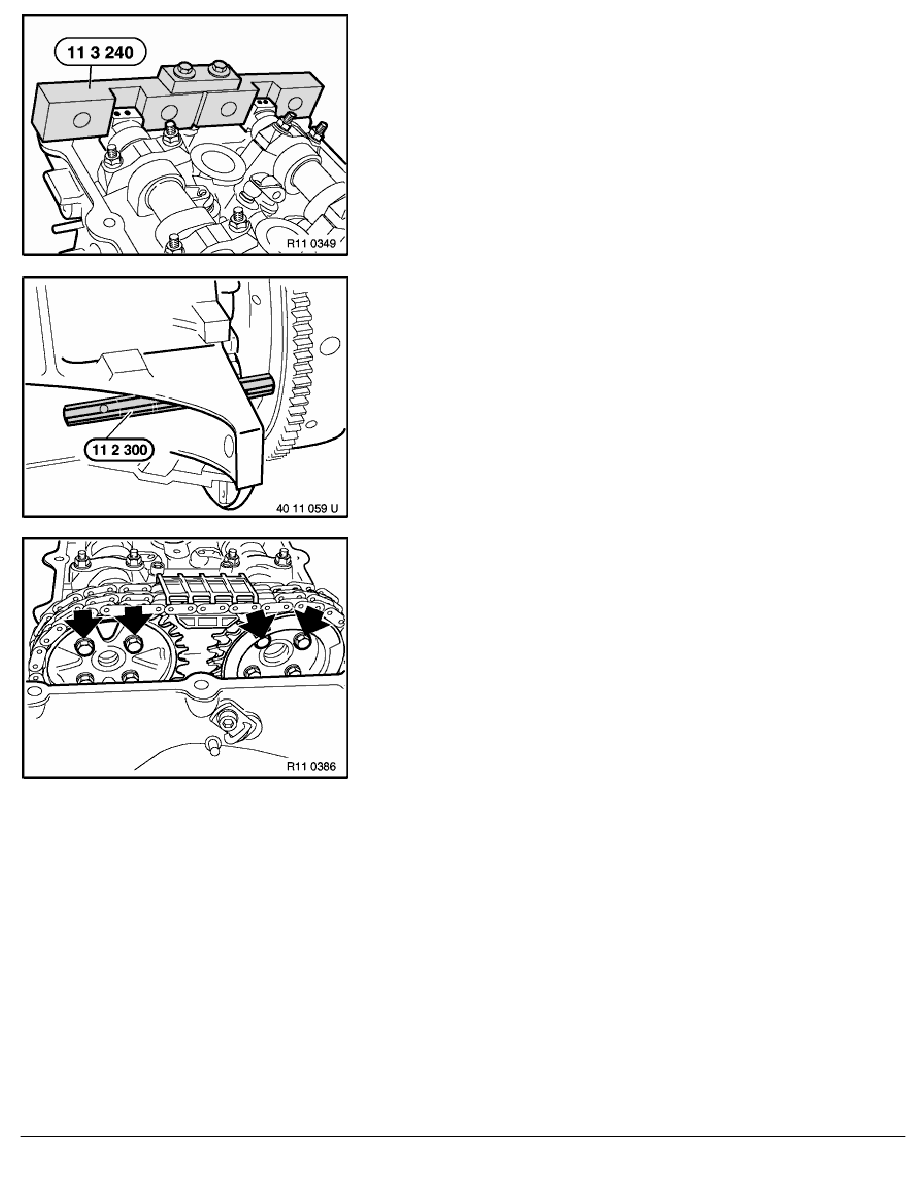

Remove Special Tool 11 3 240 from cylinder head.
Remove Special Tool 11 2 300 from locating bore in engine
block.
Rotate the engine on the central bolt enginewise until the
camshafts on the fourth cylinder are located in the firing TDC
position.
Tighten the remaining two screws on each chain wheel.
Tightening torque,
refer to Technical Data 11 31 3AZ
Assemble engine.
RA Adjusting timing of camshaft(s) (M44)
