3 Series E46 316Ci (N45) COUPE

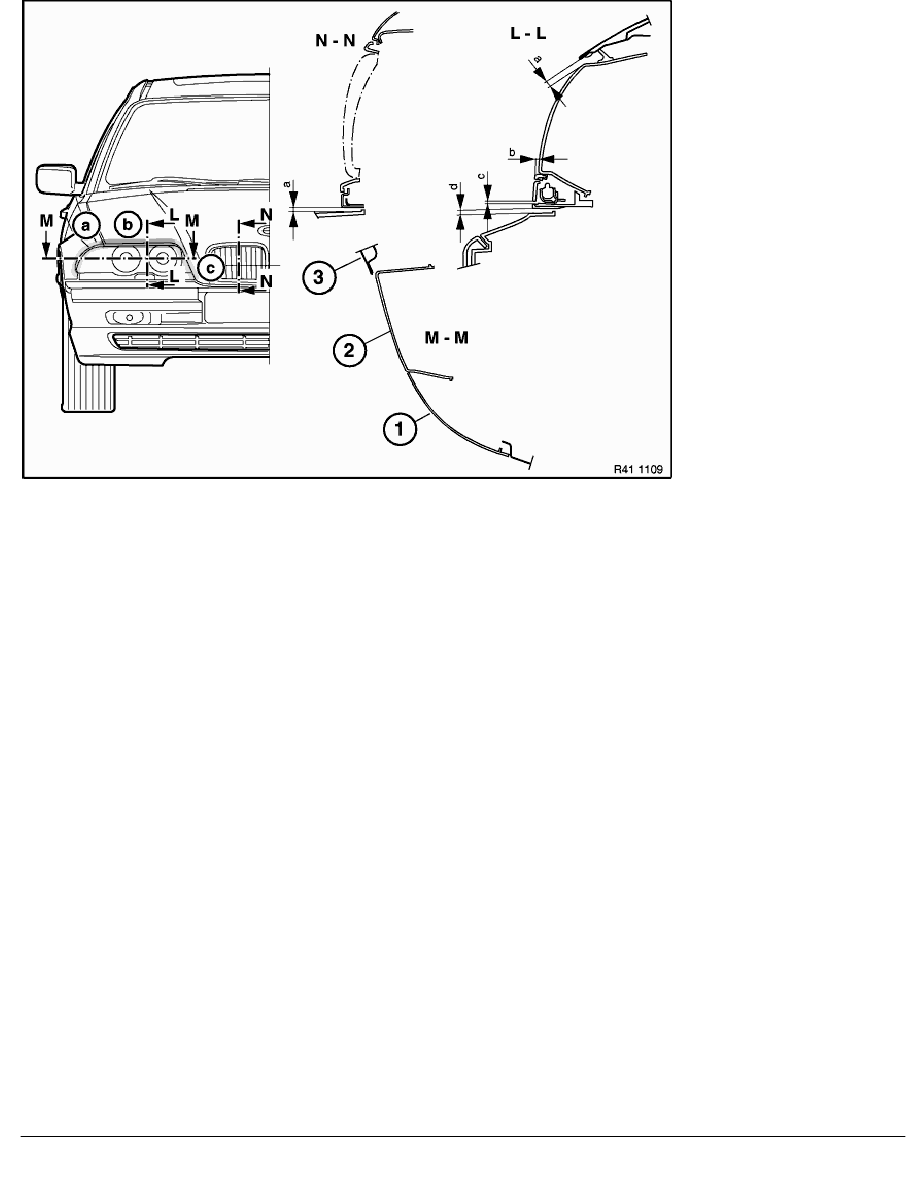

M - M:
(1) = Indicator light: side wall at engine hood to turn signal indicator, bottom
Transition from 3.3 mm to 1.5 mm
±
1 mm.
(2) = Headlight to engine hood: 5 mm
(3) = Engine hood: kidney on engine hood to headlight
Transition from 5.1 mm to 3.5 mm.
L - L:
a = 5 mm
±
1 mm
b = 3 mm
±
1 mm
c = 1,5 mm
±
0,5 mm
d = 5 mm
±
1 mm
N - N:
a = 5 mm
±
1 mm
RA Gap dimensions on doors / engine hood and trunk lid
