3 Series E46 316ti (N42) COMP

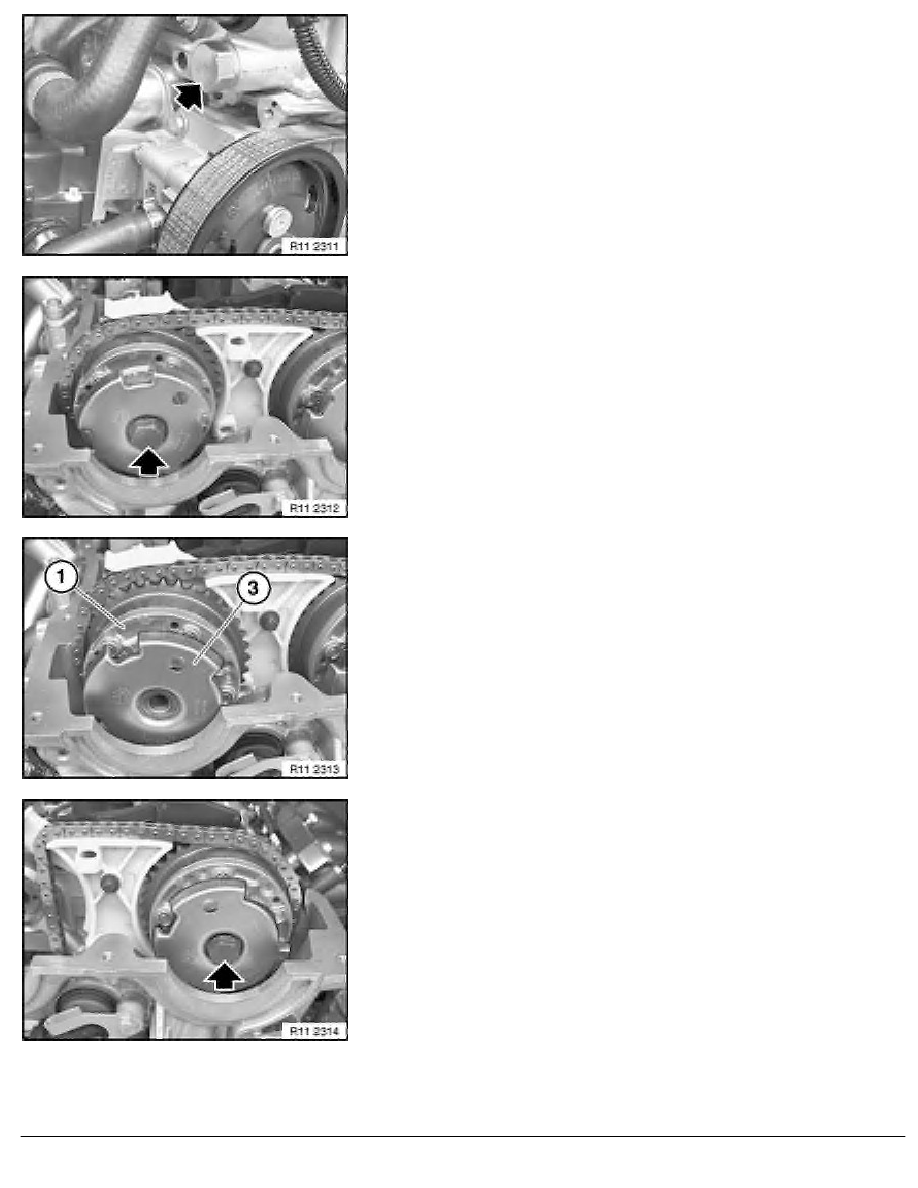

Remove chain tensioning piston.
Remove screw on exhaust adjustment unit.
Feed out exhaust adjustment unit (1) with sensor gear (3).
Remove screw on inlet adjustment unit.
RA Removing and installing/replacing inlet and exhaust adjustment unit (N42/N46)
