3 Series E46 316ti (N42) COMP
51 36 000
Replacing adjuster for rear left or right vent
window (compact)

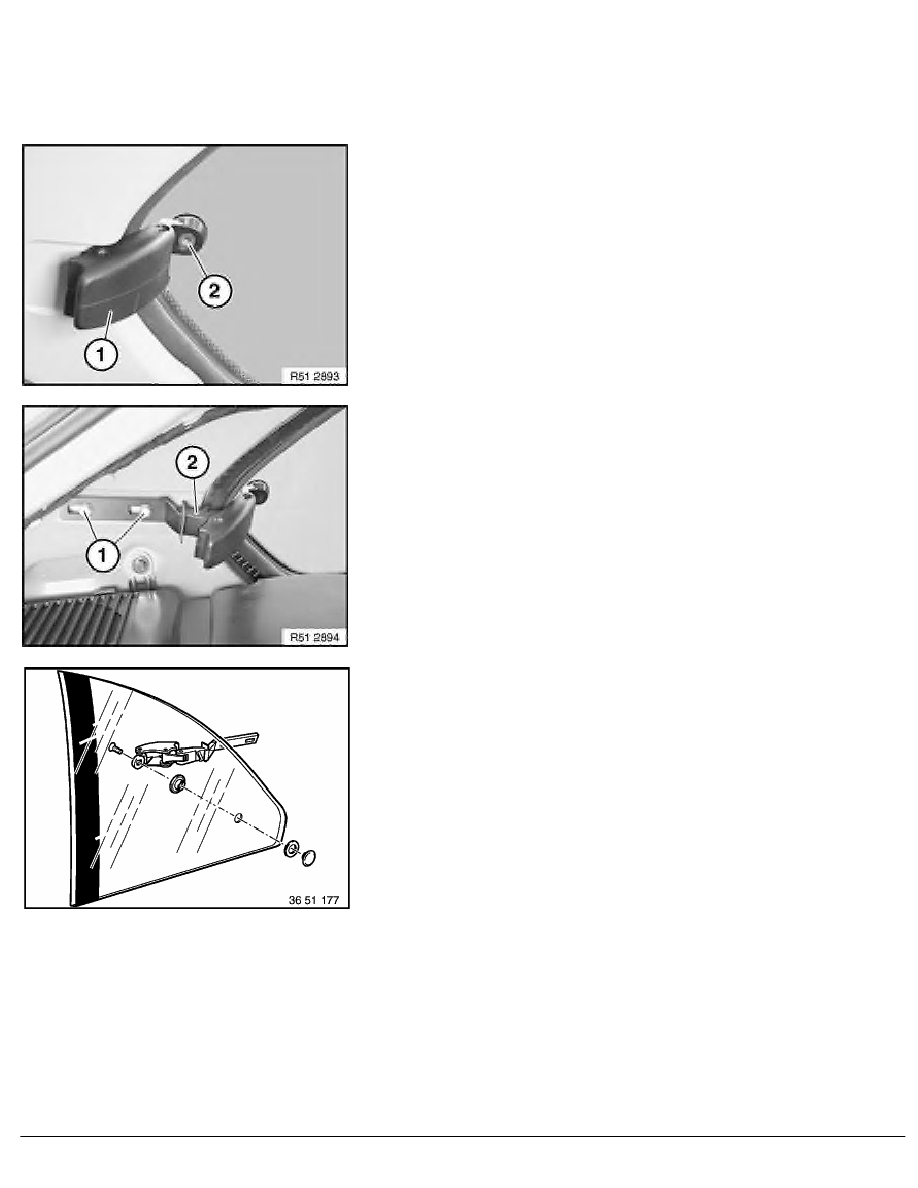

Remove panel for roof pillar at rear (C-pillar).
Note:
To release screw (2), it is essential for lever (1) to be closed.
Release screw (2).
Installation:
Tightening torque 51 36 2AZ.
Release screws (1) and remove adjuster (2).
Installation:
Correct installation:
If necessary, secure nut and seal from outside with adhesive tape.
RA Replacing adjuster for rear left or right vent window (compact)
BMW AG - TIS
25.01.2013 20:03
Issue status (12/2007) Valid only until next DVD is issued
