3 Series E46 316ti (N42) COMP
Installation:
Tightening torque 64 53 10AZ
.

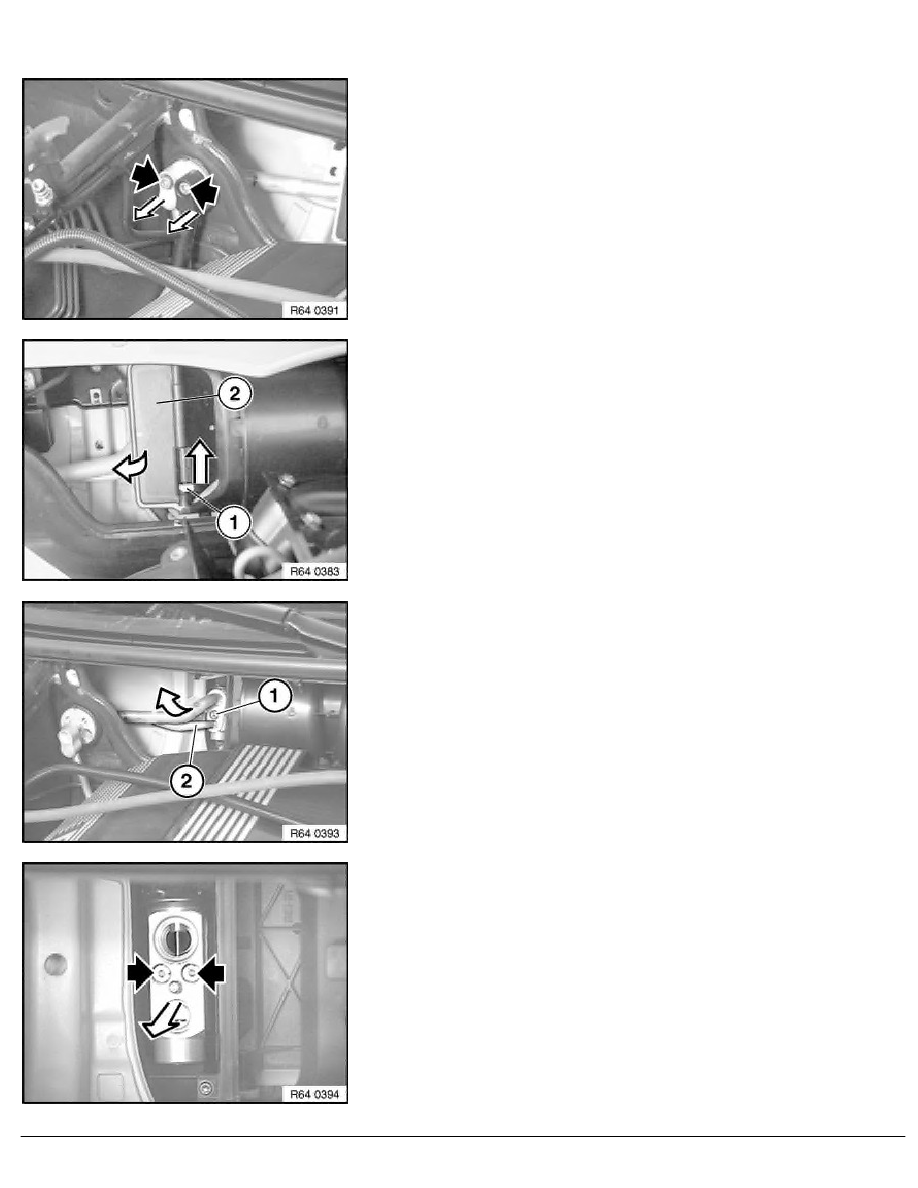

Release screws.
Detach refrigerant lines in direction of arrow.
Installation:
Replace sealing rings and moisten with refrigerant oil.
Tightening torque 64 53 2AZ
.
If necessary, pull lock (1) in direction of arrow and feed out
flap (2).
Slacken nut (1).
Installation:
Replace sealing rings and moisten with refrigerant oil.
Tightening torque 64 53 11AZ
.
Detach double pipe (2) in direction of arrow and lay to one side.
Release screws.
Installation:
Replace sealing rings and moisten with refrigerant oil.
Tightening torque 64 53 9AZ
.
Pull out expansion valve in direction of arrow.
RA Removing and installing or replacing expansion valve
